Vacuum Oil Purifier

Inquire Now Next Product

PRODUCTS DESCRIPTION

Why we should recycle the used transformer oil? Did you know that used oil never wears out? It just gets dirty and can be recycled, re-refined, and then used again. Recycling oil conserves a natural resource (oil) and is good for the environment too!

Description

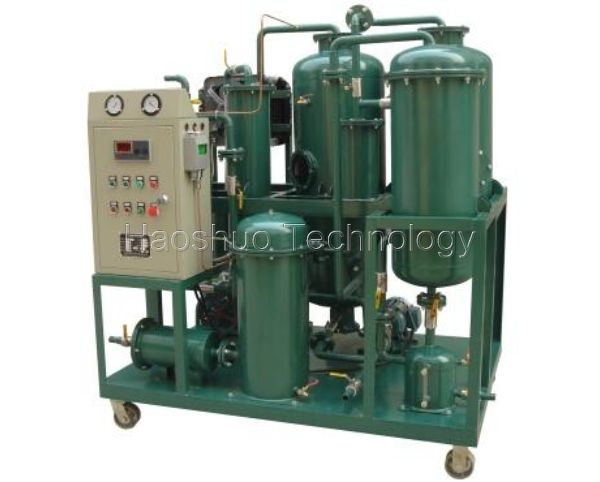

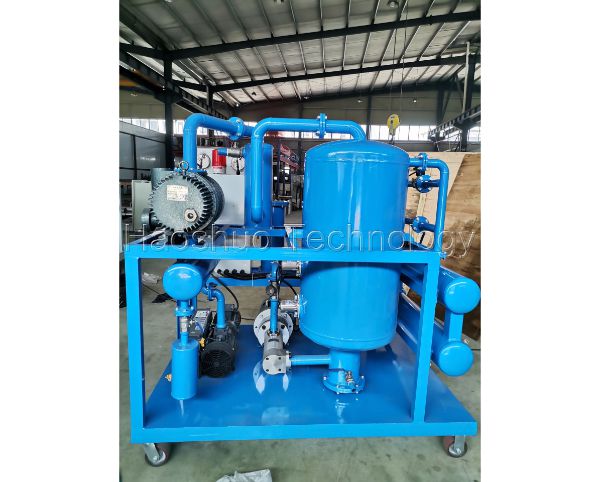

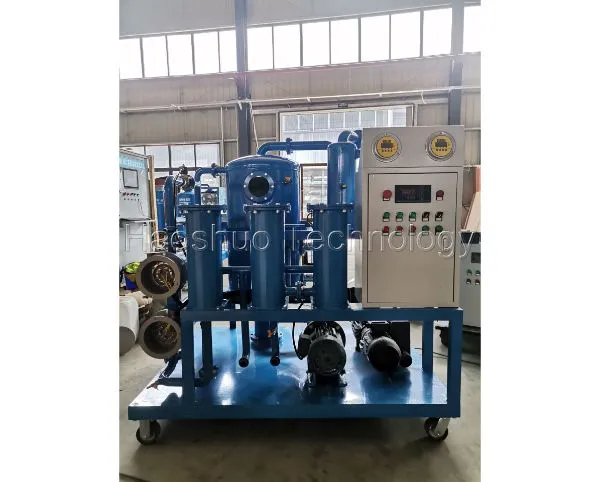

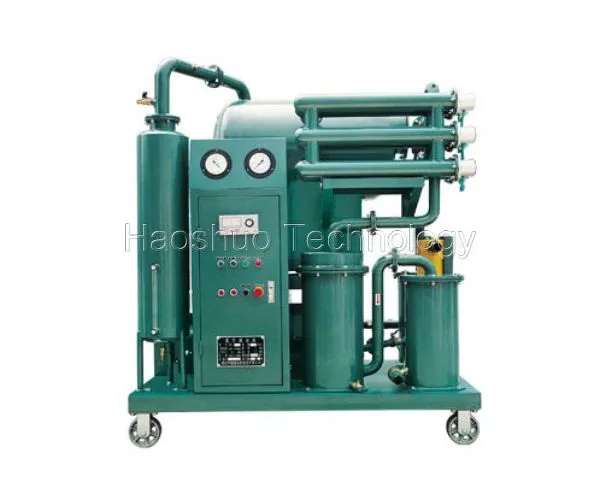

Double-stage vacuum oil filtration machine performs the function of upgrading and reconditioning of insulating transformer oil by means of removing impurities such as dust, gas, sludge, water etc. The major operation is heating, filtering, degassing and dehydration. After recycling, it can boost performance of transformers, circuit breakers, mutual inductors, cable and capacitors which have insulation system. This machine mainly used to recycling transformer oil, insulating oil and super HV transformer oil, particularly applied in large scale 110KV transport voltage device and the national transformer substations.

Main Specification

Item		Unit	ZJA-30	ZJA-50	ZJA-70	ZJA-100	ZJA-150	ZJA-200	ZJA-300
Flow Rate		L/H	1800	3000	4500	6000	9000	12000	18000
Vacuum Range		MPa	0.007
Max Vacuum Range		Pa	≤50
Working Pressure		MPa	≤0.4
Temperature Range			45-65
Water Content		PPm	≤3-5
Gas Content		%	≤0.1
Breakdown Voltage		Kv	75
Dielectric Loss		tgd	≤0.005
Flash point			240
Pour point			≤-80
Power Supply		V	380Volt/3phase/50HZ
Acid content		mgKOH/g	<0.03
Working Noise		dB	<=72				<=75
Heating Power		Kw	30	45	54	72	120	150	192
Total power		Kw	30	49	60	79	131	170	207
Inlet (Outlet) Diameter		Mm	DN25	DN32	DN42	DN42	DN50	DN50	DN60
Net Weight		Kg	650	850	1050	1300	1600	1800	1950
Dimensions	Length	Mm	1450	1600	1700	1900	2000	2400	2600
	Width	Mm	1000	1100	1250	1400	1400	1600	1800
	Height	Mm	1800	1800	1900	1950	2100	2100	2200
