The moveable vacuum system is designed for evacuating large transformers or conducting on-site maintenance for such transformers. Its perfect vacuum pump allows it to operate without the need for cooling water, making it ideal for situations where a cooling water source is unavailable or for unmovable large transformers.
Description

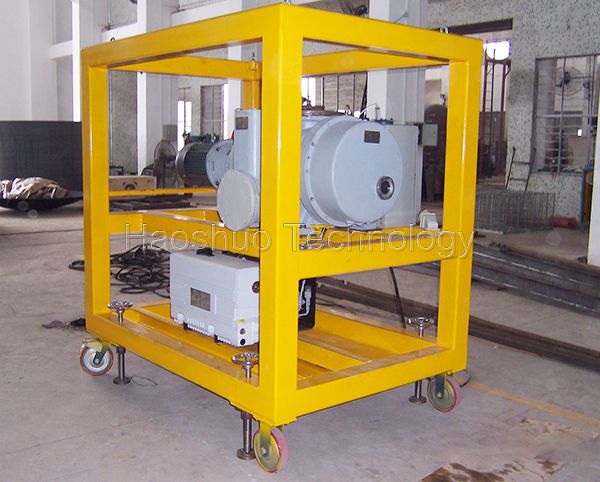

All components are mounted on a movable trolley, and the moveable vacuum system includes an integrated controlling cabinet with 30-meter cables. The system is equipped with top-brand pumps, stainless pipelines, manual ball valves, and a mini compressor, ensuring a compact and convenient setup for outdoor work. This portable and efficient system is well-suited for various on-site applications, providing an effective solution for transformer evacuation and maintenance.
Main specification
| Max. pumping speed | 200m³/h |
| Limit vacuum (unload) | ≤5Pa (full pressure) |
| Working vacuum | 5-20Pa (residual pressure) |
| Leakage rate | ≤0.1mbar.L/s |
| Ambient temperature | 5-40℃ |
| Fore pump | Leybold SV300 |
| Roots pump | Leybold WAU2001 |
