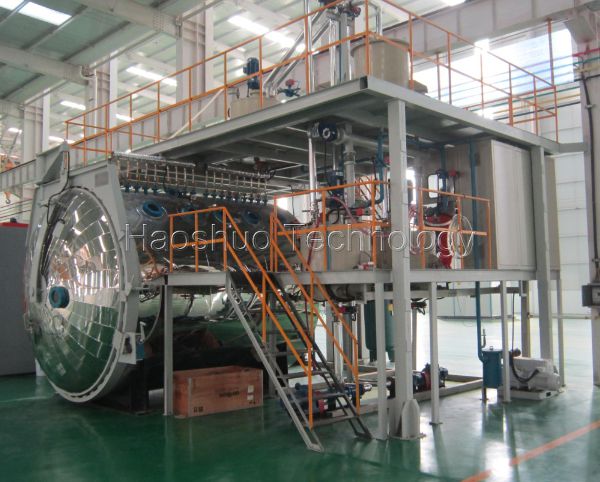

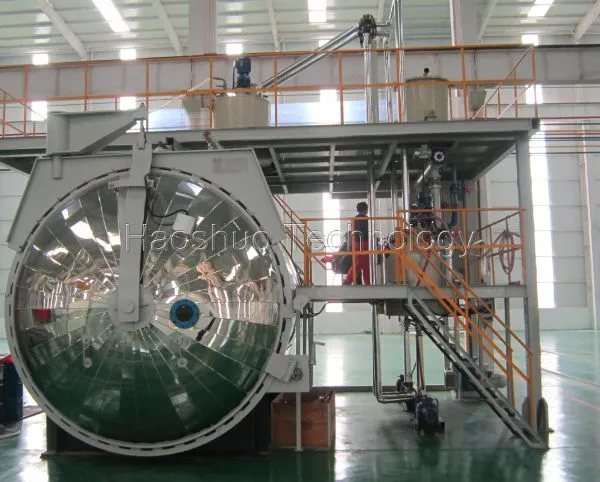

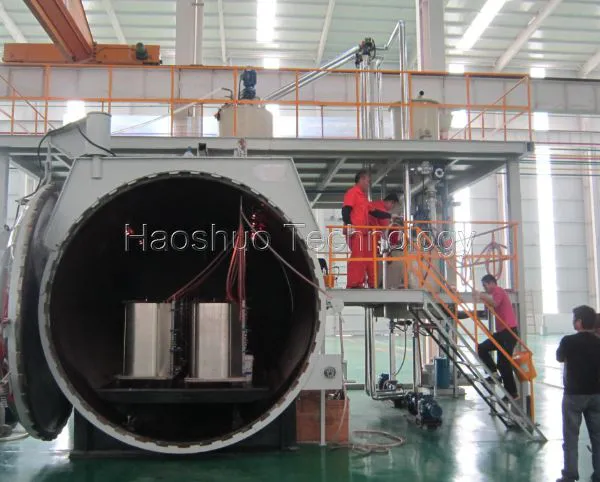

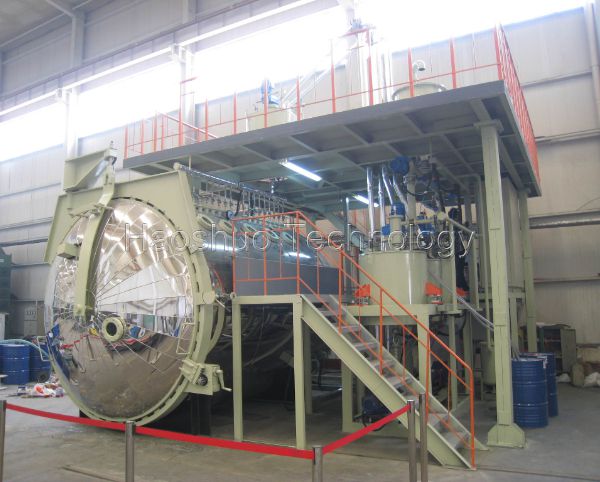

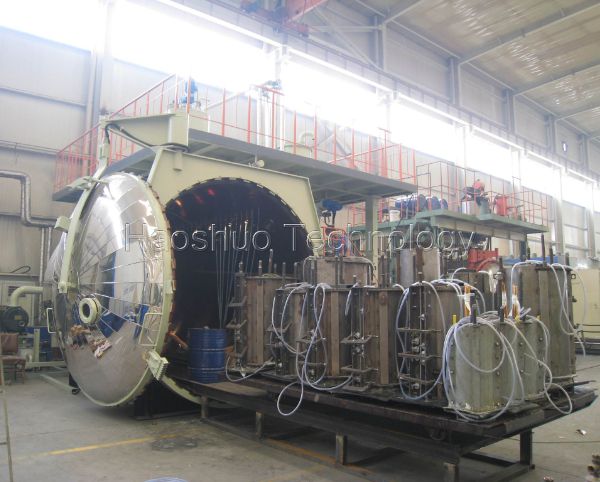

Epoxy Resin Vacuum Casting Equipment for Making Dry Type Transformer

The vacuum casting equipment is specifically designed for manufacturing dry-type transformers, bushings, dry-type reactors, high voltage switch insulation, and other related electrical products.

Description

The epoxy resin vacuum casting equipment’s main components include a material tank, mixing tank, measuring device, vacuum casting tank, vacuum pump system, heating system, and control system.

This equipment is well-suited for degassing, mixing, and casting high polymer materials like bisphenol-A, outdoor-type resin, and polyurethane. Based on customer requirements, the equipment offers the flexibility to choose between dynamic mixing and static mixing for the resin material, ensuring optimal production results.

Characteristics

1. The vacuum pump system ensures an impeccable production quality by maintaining a perfect vacuum during the process.

2. The material measuring system is highly reliable, allowing for precise feeding and accurate material proportions.

3. Advanced heating technology is employed for both the material and casting processes, enhancing efficiency and consistency.

4. The equipment features an automatic PLC control system with touch screen operation, providing seamless and user-friendly control.

5. Operating the equipment is made convenient with comprehensive parameter indication, recording, and alarm functions, streamlining the production process and ensuring optimal results.

Main Components:

1.Resin mixing & degassing system……....................................1 set

2.Hardener mixing & degassing system……..............................1 set

3.Electronic scale system……...................................................2 sets

4.Final material mixing system……............................................1 set

5.Vacuum casting tank system…….............................................1 set

6.Heating system……..................................................................4 sets

7.Vacuum pump system…….......................................................2 sets

8.Pneumatic pipeline system……................................................1 set

9.Material feeding system……....................................................1 set

10.Control system……...................................................................1 set

11.Steel platform….......................................................................1 set
