Impulse Voltage Generator System

The impulse voltage generator system is specifically designed to perform lightning impulse voltage full wave, chopped wave, and operating impulse voltage testing, effectively assessing the insulation performance of various electrical equipment such as power transformers, distribution transformers, PT, CT, arrester, and related devices.

Main Description

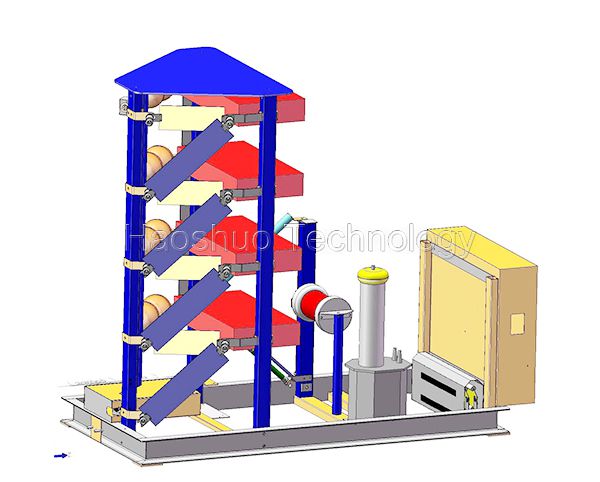

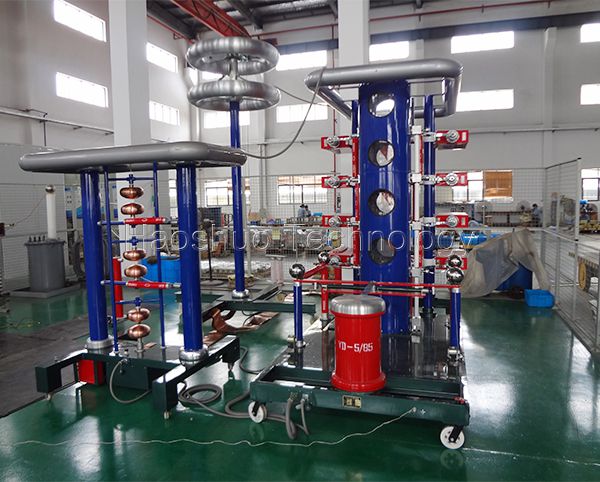

The key components of the system include generator, chopper, voltage divider, control cabinet, digital wave oscilloscope, and so on. By utilizing these advanced components, the system delivers precise and reliable testing results, ensuring the safety and efficiency of the tested electrical equipment.

Main Features:

● The loop inductance is small, and takes the band-stop filter measures, under large load capacity can produce standard shock

● The system exhibits a high voltage utilization factor, with the lightning and operating waves reaching no less than 85% and 80%, respectively.

● The system boasts user-friendly operation, excellent synchronizing performance, and dependable reliability.

● The system utilizes constant current charging automatic control technology, resulting in a high level of automation and strong anti-jamming capability.

Main Specifications
