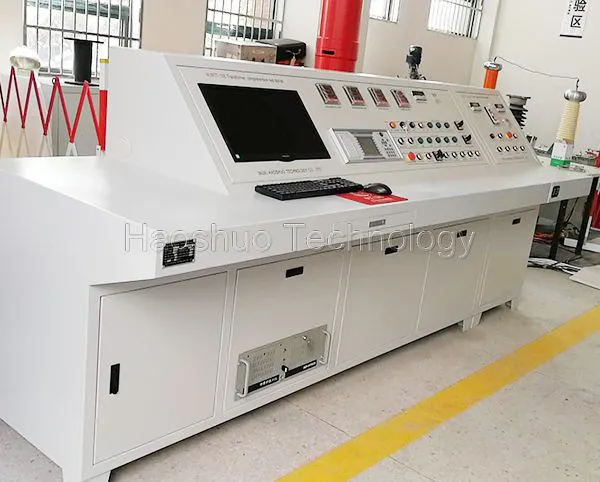

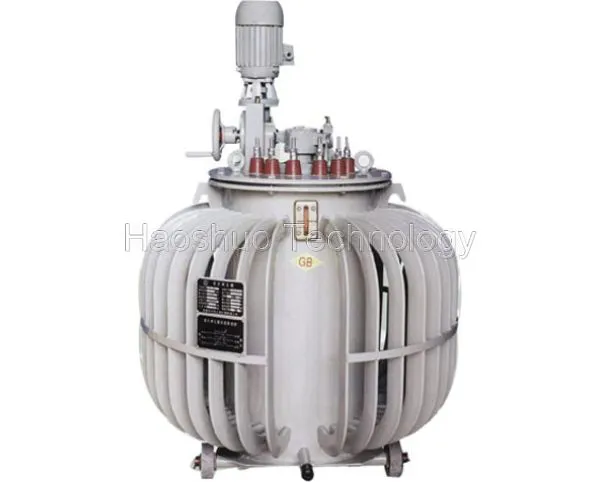

This testing bench is specifically designed for evaluating the performance and parameters of single-phase and three-phase power transformers and distribution transformers. It offers the flexibility to create automated or customized test systems, ranging from 10KV to 550KV, based on customer specifications.
Description
The Integrated test system adheres strictly to IC60076, IEEE C57, GB/T4776, DL/T572, and other relevant standards, ensuring accurate and reliable test results. With this comprehensive testing solution, customers can confidently assess and validate the quality and efficiency of their transformers, meeting industry standards and requirements.
Main Features
● The system adopts industrial computer control, multi screen menu operating
● All the parameters are digital display on screen for easily view and checking
● The testing data is automatically collecting, analyzing, measuring, and calculating
● All the parameters can be saved in Access data base, and can be printed as per need
● Automatic protection for wrong wire connection, wrong operating, over load, etc
Main Specifications

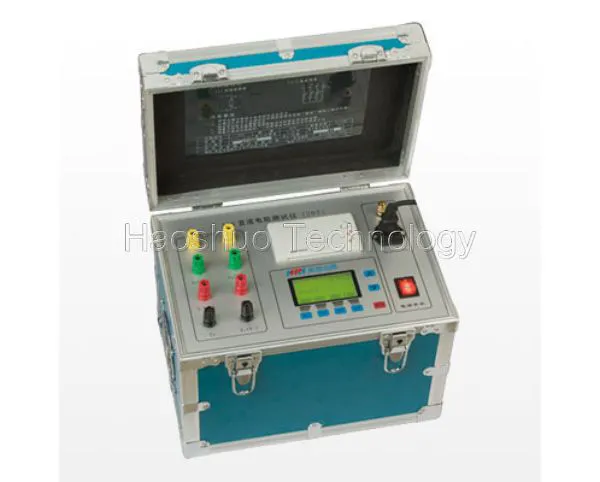

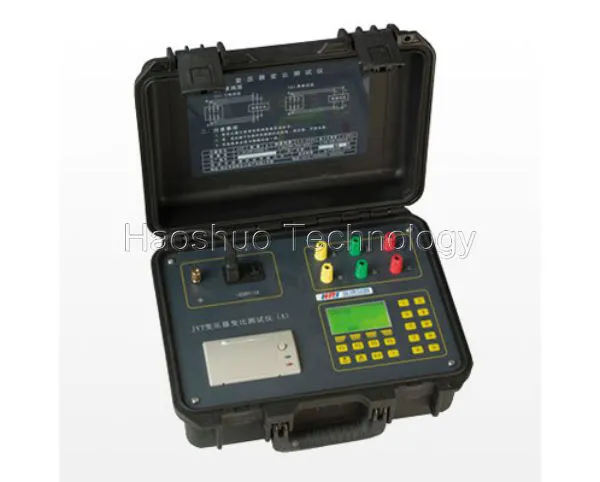

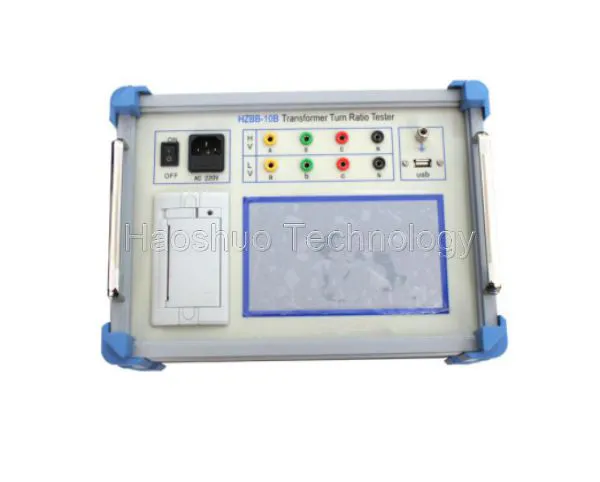

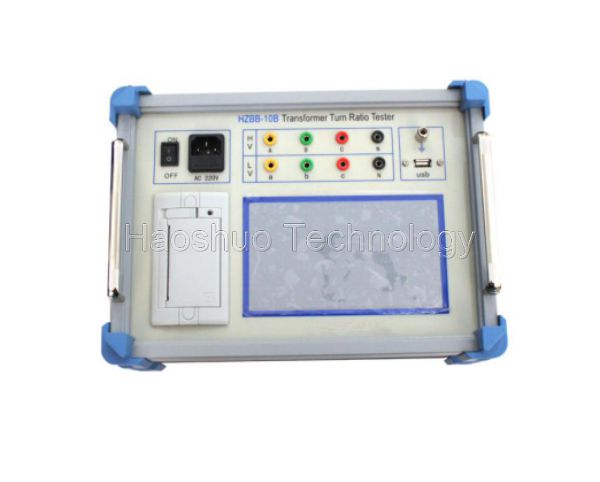

| Serial | Routine Test procedure |
| 1 | No-load characteristic test of power transformer |
| 2 | Load characteristic test of power transformer |
| 3 | DC resistance test of power transformer |
| 4 | The ratio group error test of power transformer |
| 5 | Power - frequency withstand voltage test of power transformer |
| 6 | Multi-frequency withstand voltage test of power transformer |
| 7 | Function test of environment temperature and humidity |
| 8 | Transformer insulation resistance test |
| 9 | Partial discharge test of power transformer |
| Transformer capacity | 30-360000KVA |
| Voltage | 6KV, 10KV, 35KV, 110KV, 220KV, 550KV |
| Effective power tolerance | +-0.1%+0.1measuring range |
| Power factor | 0.01 – 1.00 |
| Transformer ratio tolerance | 0.1% |
| Direct resistance | 0-2-20-200-2000 |
| Direct resistance tolerance | 0.1% |
