Our Pipe Punching Machine is industrial equipment designed to punch holes, slots, or custom patterns into metal pipes and tubes with high accuracy and efficiency. It is widely used in structural fabrication, automotive components, furniture manufacturing, HVAC systems, and construction industries. Compared with drilling, punching provides faster cycle times, cleaner edges, and better repeatability for mass production.

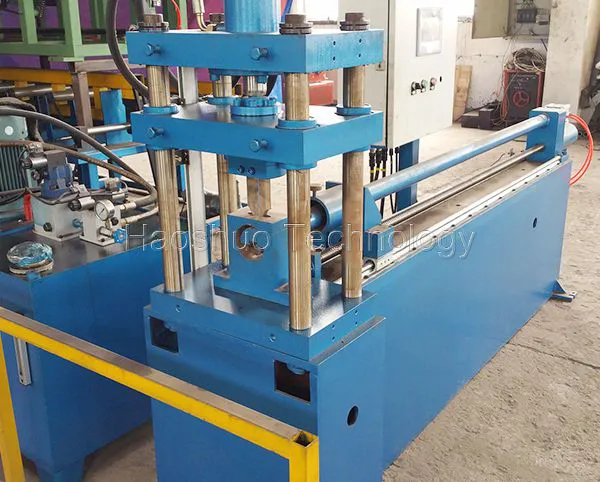

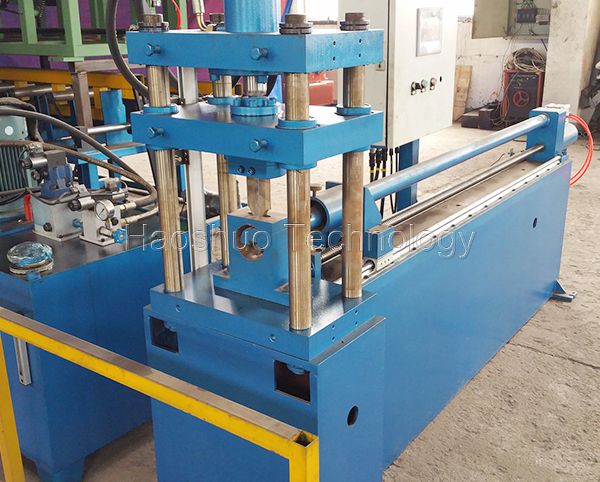

The header punch machine is a highly automated solution designed to create up to 40 pairs of slots on a pipe, enabling the production of a maximum of 40 panels.
Product Description
The machine simultaneously cuts the header pipe, forming two specially shaped, rectangular slots for each panel. To maintain the integrity of the pipe during punching, internal support is provided.
These slots are precisely matched to the manufacturer's standard design panel profile for optimal flow. The machine automatically indexes the header pipe for the next panel, repeating the punching process. Due to its computer indexing control, the indexing distance can be easily adjusted, allowing for flexible panel spacing as needed. The efficient cycle time for punching and moving to the next position is approximately 6 seconds.

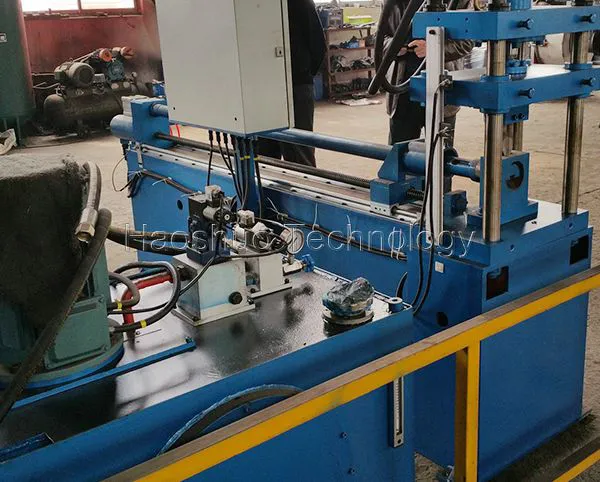

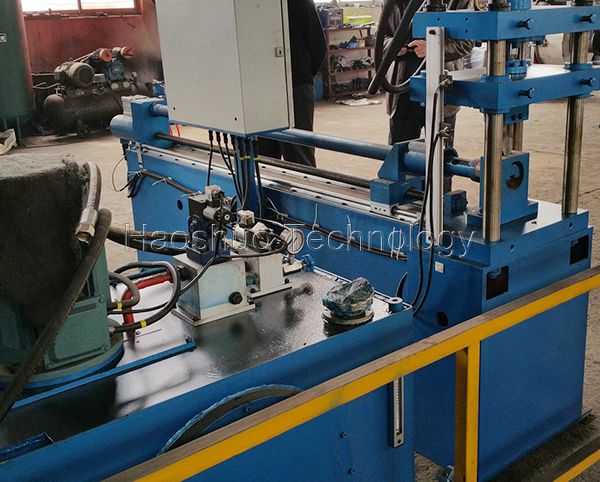

The header punch press tool is powered hydraulically, and its hydraulic power unit is integrated into the machine's frame, minimizing its footprint. Additionally, the hydraulic power system can be equipped with air/oil or water/oil cooling systems, making it suitable for applications with higher ambient temperatures. This versatile and efficient machine significantly streamlines the header punching process, contributing to the production of high-quality panels.
| No | Specification | Unit | |
| 1 | Header pipe diameter (outer) | mm | 90 |
| 2 | Header pipe wall thickness | mm | 3.0 |
| 3 | Number of slots in header pipe for each panel | 02 (1 Pair) | |
| 4 | Center distance b/w slots for panels | mm | 42 to 50(Variable) |
| 5 | Maximum length of header pipe | mm | Up to 2000 |
| 6 | Operating ConditionsThe temperatureHumidity | °C% | 8 to 42100 |
| 7 | Pneumatic connection | bar | 6 |
CNC servo control system
Accurate feeding and positioning system
Repeatable tolerance control
Suitable for round, square, and rectangular tubes
Fast punching cycle time
Automatic feeding and clamping system
Continuous operation for mass production
Reduced labor cost
Welded steel machine body
High rigidity design
Vibration-resistant structure
Long service life
Interchangeable punching dies
Multiple hole shapes (round, square, slot, oval)
Adjustable hole spacing
Custom tooling available upon request
Our machine is widely used in:
Construction scaffolding pipes
Automotive exhaust pipes
Metal furniture frames
Guardrails and fencing systems
HVAC ducting components
Solar mounting structures
Fitness equipment tubing
Suitable for carbon steel, stainless steel, aluminum, and galvanized pipes.
| Pipe Punching | Traditional Drilling |
|---|---|
| Faster cycle time | Slower processing |
| No metal chips | Generates debris |
| Cleaner hole edge | Burr formation |
| Better consistency | Tool wear variation |
| Lower cost for mass production | Higher operating cost |
If you are looking for a reliable Pipe Hole Punching Machine manufacturer, contact us today with your pipe specifications, material type, thickness, and production capacity requirements. Our engineering team will provide a customized punching solution to improve your production efficiency and reduce operating costs.
