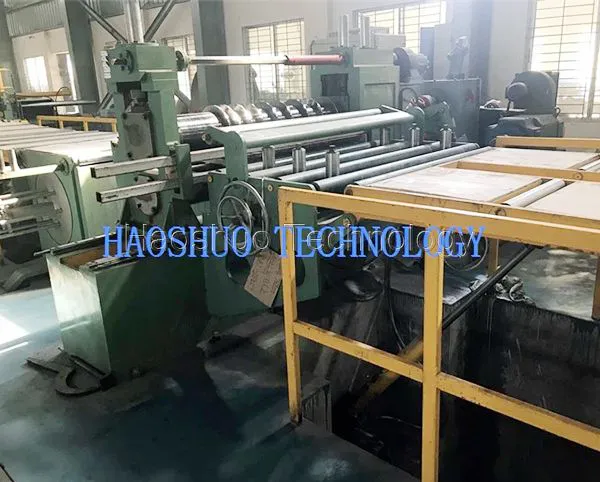

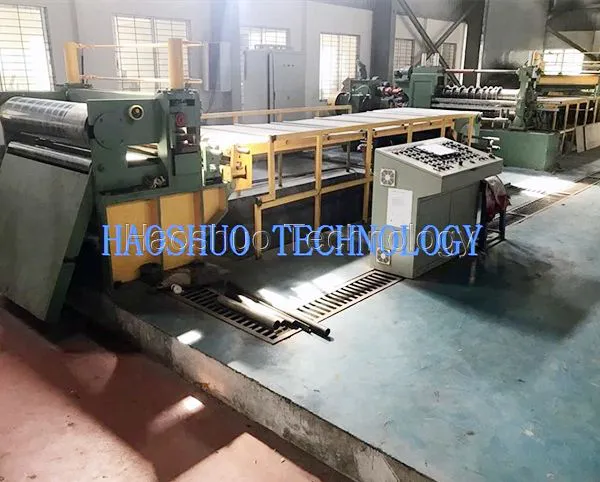

The fully automatic line is specifically designed for high-speed and high-precision longitudinal slitting of silicon steel (CRGO) coils. It efficiently processes wide coils (1000/1250mm), opening and cutting them into the required width strips before rewinding them into rolled coils.
Description
The line speed is up to 120m/min, this slitting line can achieve minimum slit widths of 8mm, 10mm, or 20mm, tailored to your specific requirements.
Working Flow

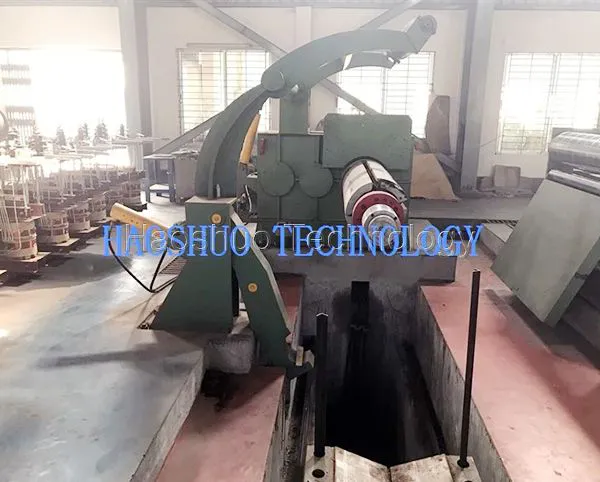

Feeding trolley→ hydraulic single-load un-coiler→ feeding unit→ plate head cutter→ rectification unit→ main slitter → scrap winder→ loop bridge and buffer pit → pre-distribution & tensioning machine→ recoiler → unloading trolley→ hydraulic & electric control
Machine Features
DC driving for slitting and recoiling
PLC automatic controlling, VF speed adjusting, touch screen operation
High quality alloy blade for precision working
International famous brand Electrical and Pneumatic elements
Machine main technical requirements
| Technical parameter | Value | Technical parameter | Value |
| Line speed | 0-120m/min | Slitting quantity | Max. 20 slits |
| Coil material | Silicon steel, etc | Slitting width | Min. 8/10/20mm |
| Slitting width tolerance | Under ±0.02mm | Coil OD | Φ800～1200mm |
| Edge straightness accuracy | Under ±0.08mm/m | Coil ID | Φ508mm |
| Re-coiling side shape tolerance | Under 0.5mm | Coil weight | Max. 5000kg |
| Production quantity after 1-time blade grinding (maintenance) | ≥800 tons | Burr | 5% of coil thickness |
| Scrap width | 1.5～15mm | Surface quality | No folding, Angular, scratches, edge damage, oil, roller printing, creases and other defects |
