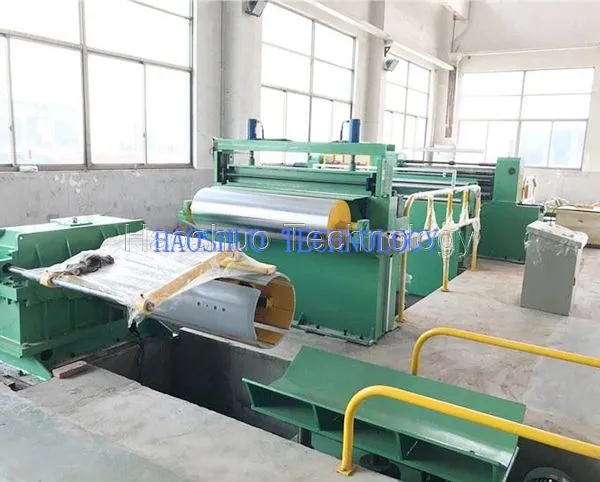

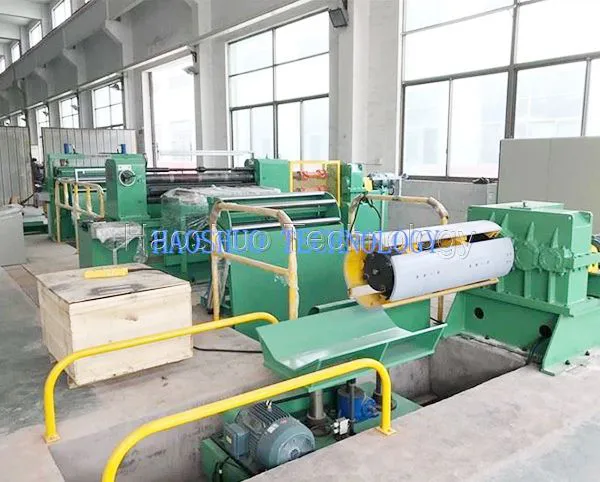

The line is especially for silicon steel (CRGO) coil longitudinal slitting. The wide coil (1000/1250mm) shall be opened and cut into required width strips and then rewinded into rolled coil. The main working flow is coil loading – decoiling – guiding – slitting – tensioning – recoiling – discharging.
Main Line Components:
● Coil car for coil loading
● Hydraulic DC powered decoiler
● Coil sheet feeding system
● Slitter (VF speed controlling)
● Tensioning system

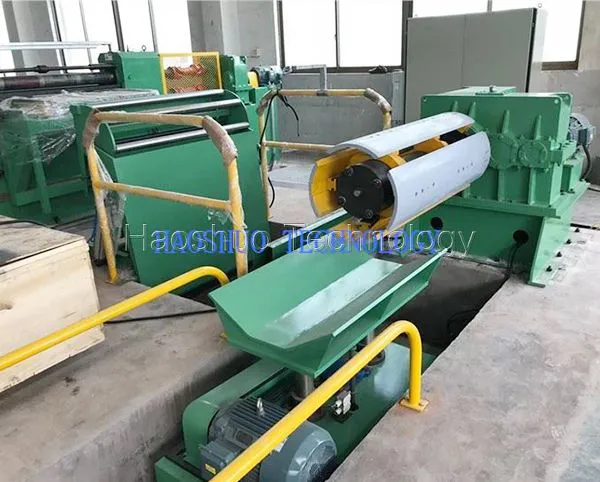

● Hydraulic DC powered recoiler
● Coil car for discharging
● Controlling cabinet
Machine Features:
DC driving for slitting and recoiling
PLC automatic controlling, VF speed adjusting
High quality alloy blade for precision working
International famous brand Electrical and Pneumatic elements
| Model | ZJX1000 | ZJX1250 |
| Coil thickness | 0.23-0.5mm | 0.23-0.5mm |
| Max width of coil | 1000mm | 1250mm |
| Slitting speed | 0-60m/min | 0-60m/min |
| Slit width | Min 40mm | Min 40mm |
| Width precision | ±0.1mm | ±0.1mm |
| Edge linear straightness | ±0.1mm/m | ±0.1mm/m |
| Strip burr | Less than 0.02mm | Less than 0.02mm |
| Coil weight | 5 / 8 / 10 tons | 5 / 8 / 10 tons |
