A transformer core machine converts grain-oriented electrical steel (CRGO) into accurately cut, stacked, and assembled transformer cores. This equipment helps manufacturers control core loss, joint quality, production speed, and material waste. For factories comparing an automatic transformer core cutting machine, a CRGO transformer core cutting machine, or a complete transformer core manufacturing machine, the key question is not only how fast the machine runs. The real issue is whether it can maintain dimensional accuracy from the CRGO coil to the finished core.

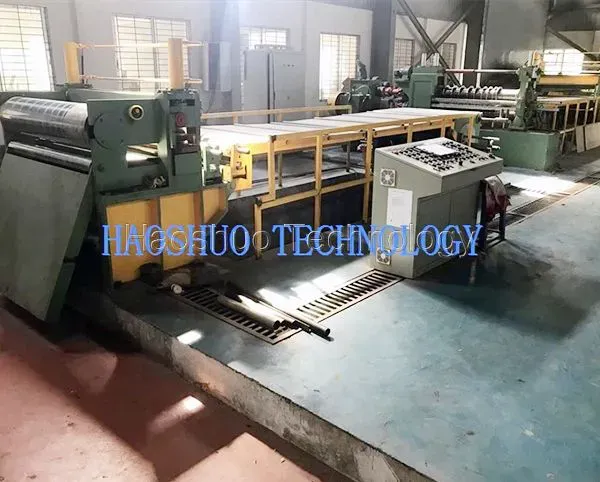

Transformer Core Manufacturing Process: From CRGO Coil to Finished Core
A Transformer Core Machine is industrial equipment used to process CRGO steel into the magnetic core of a transformer. It may include several machines or production units:
CRGO coil slitting machine
Automatic core cutting machine
V-notching and corner-cutting unit
Burr inspection system
Core stacking table
Core tilting and clamping system
Step-lap stacking machine
Core banding and measuring equipment
The transformer core provides a low-reluctance path for magnetic flux. When alternating current passes through the primary winding, the core transfers magnetic energy to the secondary winding. The core must guide this flux with low electrical and magnetic loss.
CRGO steel:
CRGO means cold-rolled grain-oriented electrical steel. Its magnetic grains are aligned mainly in the rolling direction. This alignment lowers magnetic loss when the steel is cut and stacked correctly.
Core loss:
Core loss is the power lost in the magnetic core during operation. It includes:
Hysteresis loss, caused by repeated magnetization and demagnetization
Eddy-current loss, caused by circulating currents inside the steel
Step-lap joint:
A step-lap joint uses overlapping steel strips at the core corners. Compared with a simple butt joint, it can reduce local flux concentration and improve magnetic performance when the cutting and stacking process is controlled.
Burr:
A burr is a raised edge left after cutting. Excessive burrs can reduce insulation between laminations, increase eddy-current loss, and create assembly problems.
Lamination factor:
The lamination factor is the ratio of the solid steel area to the total stacked core area. Insulation coating, air gaps, and surface damage affect this value.
Transformer cores operate under alternating magnetic flux. Small manufacturing errors can create local magnetic stress and higher no-load loss.
Important control points include:
Cutting angle
A wrong angle changes the magnetic path at the corner.
Length tolerance
Incorrect strip length can create gaps during stacking.
Burr height
A large burr may damage insulation between laminations.
Stacking pressure
Excessive pressure can damage the steel coating, while low pressure may leave air gaps.
Joint alignment
Poor alignment increases leakage paths and local flux concentration.
Core clamping force
Uneven force can deform the core and affect winding assembly.
The International Electrotechnical Commission provides transformer requirements through the IEC 60076 series. IEC 60076-1 covers general requirements for power transformers, while IEC 60404-8-7 addresses specifications for grain-oriented electrical steel used in electrical equipment.
A reliable production line follows a controlled sequence. Each stage affects the final no-load loss, noise level, mechanical strength, and dimensional accuracy.
Before loading the coil, the operator should check:
Steel grade and thickness
Coil width
Surface coating condition
Core loss data from the material certificate
Magnetic induction value
Coil weight and outer diameter
Edge damage and rust
CRGO steel is commonly supplied in thin gauges, often around 0.23 mm to 0.30 mm for distribution and power transformer applications. The correct thickness depends on the transformer design and required loss level.
The manufacturer should compare the material certificate with the purchase specification. For example, a design requiring 0.27 mm CRGO should not be mixed with 0.30 mm material without recalculating the core loss and stacking dimensions.
The coil is placed on the decoiler or uncoiler. Hydraulic or electric expansion holds the coil securely.
The uncoiling system should provide:
Stable tension
Automatic centering
Controlled acceleration and braking
Protection against coil edge movement
Safe loading for the specified coil weight
Unstable tension can cause strip deviation. If the strip shifts by even a small amount during high-speed feeding, the cut length and V-notch position may move outside the required tolerance.
When the supplied coil is wider than the required lamination width, a slitting machine divides it into narrower strips.
The slitting process must control:
Slit width
Edge quality
Knife overlap
Knife clearance
Burr height
Strip tension
A poor slitting setup can produce cracked edges or excessive burrs. These defects may remain hidden until the stacking stage, so edge inspection should be performed immediately after slitting.
The feeding system moves the CRGO strip toward the cutting section. Servo motors and encoder feedback are commonly used to control position.
A good control system records:
Target strip length
Actual strip length
Cutting angle
V-notch location
Feeding speed
Error alarms
Production quantity
Closed-loop positioning is more reliable than manual adjustment because the controller can compare the programmed position with encoder feedback during every cycle.
The cutting unit creates the required lamination shape. Depending on the core design, the machine may perform:
Straight cutting
45-degree miter cutting
V-notching
Multiple-length cutting
Step-lap cutting
Automatic sorting
For a mitered core, the cutting angle must match the design drawing. A typical corner uses a 45-degree cut, but the exact geometry depends on the core structure.
The cutting tool should produce a clean edge without excessive deformation. Tool wear can change the angle and increase burr formation. Manufacturers should establish a tool inspection schedule based on cut quantity, material thickness, and test results.
After cutting, laminations are usually sorted by length and cutting position. This prevents incorrect pieces from entering the stack.
The machine can use:
Length groups
Barcode or QR-code labels
Batch numbers
Digital production records
Operator confirmation screens
Sorting is particularly important for step-lap cores, where the overlap sequence must follow the design program.
The cut laminations are placed on a stacking table. Operators or automatic stacking systems arrange the layers according to the core design.
Common stacking methods include:
Butt-lap stacking
Step-lap stacking
Interleaved stacking
Three-phase core stacking
Five-leg core stacking
During stacking, the operator should check:
Leg width
Window size
Core height
Joint overlap
Layer direction
Surface cleanliness
Alignment between laminations
Metal dust, oil, and loose particles should be removed before assembly. Contamination can affect insulation and create uneven contact between layers.
After stacking, the core is compressed and secured with bands, clamps, or other fixing systems.
Clamping should be balanced across the core. Uneven pressure can cause:
Core deformation
Increased vibration
Mechanical noise
Assembly difficulty
Local air gaps
The final clamping method depends on the transformer design, insulation system, and winding structure.
The finished core should be tested before it enters the winding process.
Typical checks include:
Core dimensions
Window dimensions
Joint condition
Lamination alignment
Burr inspection
Insulation resistance
No-load loss
No-load current
Audible noise
Core grounding condition
For a production line, the test results should be linked to the material batch and machine program. This helps identify whether a defect came from the CRGO coil, slitting, cutting, stacking, or clamping stage.
A Transformer Core Machine is used in several transformer manufacturing sectors.
Distribution transformers commonly use wound or laminated CRGO cores. A precise cutting system helps manufacturers produce repeatable dimensions for different power ratings.
The machine may process:
Single-phase transformer cores
Three-phase transformer cores
Pole-mounted transformer cores
Pad-mounted transformer cores
Compact distribution transformers
Large power transformers require larger core sections and tighter process control. The production line may use automatic cutting, step-lap stacking, laser marking, and digital quality records.
Important requirements include:
High dimensional repeatability
Stable feeding of wide CRGO strips
Low burr cutting
Accurate corner geometry
Controlled stacking pressure
Traceable inspection data
Current transformers and voltage transformers also use magnetic cores. Their designs may require smaller dimensions and specific magnetic properties.
Core accuracy affects:
Ratio accuracy
Excitation current
Saturation behavior
Protection relay performance
Metering accuracy
Dry-type transformers use cast resin or air insulation instead of liquid insulation. Their cores still require accurate cutting and stacking to reduce no-load loss and vibration.
Related equipment may also be used for:
Reactor cores
Isolation transformer cores
Furnace transformer cores
Rectifier transformer cores
Traction transformer cores
High-frequency magnetic assemblies, when the material is suitable
The required machine configuration should be selected according to material thickness, strip width, core type, transformer rating, and expected monthly output.
Automatic nesting and programmed cutting can reduce unnecessary offcuts. The actual saving depends on the core design, strip width, cutting pattern, and operator control. Manufacturers should compare the following data before and after installation:
[ \text{Material Utilization Rate} = \frac{\text{Steel Weight in Finished Core}}{\text{Steel Weight Purchased}} \times 100\% ]
For example, if 980 kg of steel is purchased and 941 kg becomes part of finished cores:
[ \frac{941}{980} \times 100\% = 96.02\% ]
This calculation gives a clearer result than saying the machine has “low waste.”
Servo positioning, encoder feedback, and automatic programs can reduce variation between laminations. The manufacturer should verify performance through a sample inspection, such as measuring 30 to 50 pieces from different production batches.
Useful measurements include:
Length deviation in millimeters
Angle deviation in degrees
Burr height in micrometers
Width deviation in millimeters
Number of rejected laminations per batch
The machine does not create the CRGO material’s magnetic properties. However, it helps preserve those properties by reducing:
Incorrect cutting angles
Excessive burrs
Joint gaps
Surface damage
Misalignment
Uneven pressure
Core loss should be confirmed with a calibrated test system rather than estimated from machine speed.
Production capacity depends on:
Lamination length
Number of cuts per cycle
Strip thickness
Feeding speed
Cutting angle
Sorting method
Operator loading time
Planned maintenance
Instead of using a general claim such as “high speed,” ask the supplier for a tested output table. The table should show pieces per minute, cores per shift, material size, and rejection rate.
Modern machines can store programs for different core sizes. This reduces manual calculation and supports repeat production.
A useful record may include:
Product code
CRGO grade
Material thickness
Lamination length
Cutting angle
Step-lap sequence
Operator name
Production time
Alarm history
Inspection result
These records can support ISO 9001 quality management and make fault tracing easier.
Before requesting a quotation, prepare:
Core drawing
Leg width
Window size
Core height
Lamination thickness
Step-lap structure
Maximum and minimum strip length
Required transformer ratings
A machine designed for small distribution cores may not process large power transformer cores.
Ask whether the machine supports the required:
Material thickness
Strip width
Coil weight
Coil diameter
Steel grade
Surface coating
Cutting pattern
The supplier should confirm these values in writing.
Do not rely only on words such as “high precision.” Request:
Cutting length tolerance
Angle tolerance
Burr height
Feeding accuracy
Repeatability test results
Finished-core dimensional tolerance
The test conditions should include the material thickness and lamination size.
There are three common configurations:
Manual or semi-automatic system:
Lower initial cost and suitable for small production volumes, but it requires more operator involvement.
Automatic cutting line:
Suitable for repeat production. It can include automatic feeding, cutting, sorting, and program storage.
Integrated core manufacturing line:
Combines slitting, cutting, sorting, stacking, clamping, and testing. It requires more factory space and a larger investment but offers better process integration.
Ask about:
Installation support
Operator training
Remote diagnosis
Response time
Cutter replacement
Servo motor availability
Control system backup
Preventive maintenance schedule
A machine that stops for several days because of a small unavailable part can reduce the real production capacity.
The purchase price is only one part of the investment. Include:
Electricity consumption
Tool replacement
Lubrication
Spare parts
Labor cost
Training
Maintenance
Floor preparation
Software updates
Production downtime
A simple comparison can use:
[ \text{Cost per Core} = \frac{\text{Material Cost}+\text{Labor Cost}+\text{Energy Cost}+\text{Maintenance Cost}}{\text{Number of Finished Cores}} ]
This gives a more useful result than comparing machine prices alone.
Before installation, prepare:
A level foundation
Suitable electrical power
Compressed air, if required
Safe material storage
Adequate lifting equipment
Operator access space
Grounding and safety protection
The exact requirements must come from the equipment manual. Large cutting lines may require a reinforced foundation because vibration can affect cutting accuracy.
Operators should inspect:
CRGO strip alignment
Cutter condition
Lubrication points
Sensor cleanliness
Emergency-stop function
Air pressure
Hydraulic oil level
Burr formation
Loose fasteners
A maintenance team should review:
Servo positioning accuracy
Guide roller wear
Knife clearance
Belt or chain tension
Electrical cabinet filters
Encoder signal stability
Stacking table flatness
A factory may set an inspection plan such as:
First-piece inspection after program change
Sampling inspection every production batch
Full dimensional inspection for new core designs
No-load loss testing for finished core groups
Tool inspection after a defined number of cuts
The inspection frequency should be based on risk, product value, and historical defect data.
Possible causes:
Dull cutting tool
Incorrect knife clearance
Wrong material thickness setting
Excessive strip vibration
Corrective action:
Inspect and replace the cutter
Adjust clearance according to the material
Reduce vibration
Check strip tension
Possible causes:
Encoder calibration error
Strip slippage
Incorrect program input
Servo motor alarm
Corrective action:
Compare programmed and actual length
Calibrate the encoder
Check feeding rollers
Test the servo system
Possible causes:
Incorrect stacking sequence
Wrong sorting group
Operator handling error
Incorrect V-notch position
Corrective action:
Verify the cutting program
Label each group
Use automatic sorting
Inspect the first complete stack
Possible causes:
Excessive joint gap
Damaged CRGO coating
Wrong cutting angle
High burr
Core deformation
Incorrect material grade
Corrective action:
Check joint geometry
Inspect the steel surface
Test the material certificate
Measure core dimensions
Repeat the no-load loss test with calibrated equipment
Possible causes:
Loose core clamping
Uneven stack pressure
Core vibration
Joint misalignment
Magnetostriction in the steel
Corrective action:
Check clamping force
Inspect the core surface
Confirm stacking alignment
Review the CRGO material and operating flux density
The following sources can help manufacturers define technical requirements:
IEC 60076 series — Power Transformers
International Electrotechnical Commission:
https://webstore.iec.ch/en/standards
IEC 60404 series — Magnetic Materials
This series covers magnetic materials, including electrical steel used in transformer cores:
https://webstore.iec.ch/en/standards
IEEE C57.12.00 — General Requirements for Liquid-Immersed Distribution, Power, and Regulating Transformers
IEEE Standards Association:
https://standards.ieee.org/
U.S. Department of Energy — Distribution Transformer Efficiency Standards
DOE provides regulatory information on transformer energy efficiency and distribution transformer losses:
https://www.energy.gov/
U.S. Department of Energy — Energy Saver and Grid Efficiency Resources
Transformer efficiency is important because transformers remain energized for long operating periods, making no-load loss a continuing energy cost:
https://www.energy.gov/energysaver
When purchasing equipment, use these standards together with the transformer design specification, CRGO supplier data, and local electrical regulations.
It cuts and processes CRGO electrical steel into laminations used to build transformer cores. Depending on the configuration, it can also slit coils, create V-notches, sort laminations, stack the core, and record production data.
Most power and distribution transformer cores use grain-oriented electrical steel, commonly called CRGO steel. The exact grade and thickness depend on the transformer design, operating frequency, flux density, and required loss level.
No. A core machine processes magnetic steel. A winding machine places copper or aluminum conductor around the core or winding form. These are separate stages in transformer manufacturing.
Step-lap cutting creates an overlapping joint pattern at the core corners. The overlap is distributed across multiple layers instead of placing every joint at the same location.
Measure a representative sample for:
Lamination length
Cutting angle
Strip width
V-notch position
Burr height
Finished-core dimensions
Use calibrated measuring tools and record the material thickness, program number, and production batch.
Many programmable machines can process multiple sizes within their working range. However, the maximum strip width, length, coil weight, cutting method, and stacking design limit the product range.
Control the full process:
Select suitable CRGO steel.
Avoid surface damage.
Maintain correct cutting angles.
Reduce burrs.
Control joint gaps.
Use the correct step-lap sequence.
Maintain even clamping pressure.
Test no-load loss after core assembly.
Provide:
Core drawings
CRGO thickness and width
Coil weight and diameter
Required output per day or month
Core type
Step-lap requirements
Factory power supply
Available floor space
Target accuracy
Preferred automation level
It depends on production volume, labor cost, product variety, and future expansion. A semi-automatic machine may be practical for low volume, while an automatic line may reduce labor and improve repeatability when the same core designs are produced regularly.
Before selecting equipment, complete these steps:
Collect at least three machine specifications.
Send the same core drawing to each supplier.
Request a cutting sample or factory test.
Compare measured tolerance, burr height, and output.
Calculate cost per finished core.
Confirm installation, training, and spare-parts support.
Review the warranty and acceptance-test procedure.
Ask for a complete user guide and maintenance schedule.
Manufacturers looking for a tailored solution can further study Transformer Core Manufacturing Process requirements or discuss core-cutting equipment with Haoshuo. A supplier should be able to recommend the machine configuration based on CRGO specifications, core dimensions, production volume, and required quality data—not only on a general product catalogue.
Copyright © Wuxi Haoshuo Technology Co., Ltd. All Rights Reserved | Sitemap
