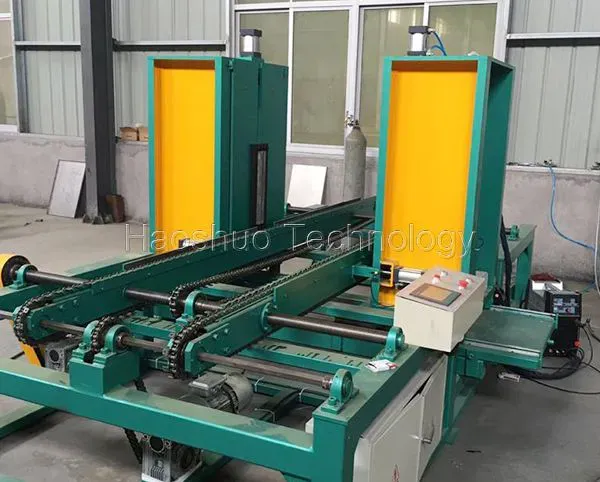

With the right inspection method and cutting settings, we can help you reduce transformer core cutting burrs, protect magnetic performance, and improve production consistency. In this guide, I will show you how to identify burr-related problems, select suitable tooling, set a transformer core cutting machine, inspect every critical part, and establish a repeatable process with Haoshuo equipment.
A cutting burr is a raised, deformed edge created when electrical steel is sheared, slit, or punched. In transformer core production, even a small burr can affect lamination stacking, insulation integrity, magnetic loss, noise, and final assembly accuracy.
The impact is especially important when processing grain-oriented electrical steel (GOES), where the rolling direction, coating condition, and cut edge quality directly influence core performance.
When a Transformer Core Cutting Machine produces excessive burrs, manufacturers may experience:
Higher iron loss and no-load loss
Increased magnetizing current
Localized short circuits between laminations
Reduced interlaminar insulation resistance
Poor step-lap accuracy
Uneven core clamping pressure
Higher audible noise and vibration
More rework, deburring, and material waste
Difficulty meeting customer acceptance criteria
For this reason, How Cutting Burr Affects Transformer Core Performance is not only a quality-control question. It is also a production-cost, energy-efficiency, and transformer-reliability issue.
Transformer cores are assembled from thin electrical steel laminations. Each lamination normally has an insulating coating that prevents current from flowing freely between adjacent sheets.
A sharp or folded burr can pierce, scrape, or compress this coating. Once neighboring laminations make metallic contact, circulating eddy currents can increase.
This may lead to:
Increased local eddy-current loss
Hot spots in the core
Lower insulation resistance
Accelerated coating damage during stacking
Reduced transformer efficiency
A burr does not need to be large to cause a problem. A burr height of approximately 0.03–0.05 mm can already become a concern in high-precision core manufacturing, depending on material thickness, coating condition, stacking pressure, and the customer’s specification.
A transformer core is designed to guide magnetic flux through a controlled magnetic circuit. Burrs deform the edge geometry and may create unwanted electrical bridges between laminations.
As a result, the core may show:
Higher hysteresis and eddy-current losses
Increased no-load current
Higher local temperature
Reduced energy efficiency
Greater thermal stress during continuous operation
For distribution transformers and power transformers, these effects can become significant over the equipment’s service life. Even a small increase in no-load loss may create substantial energy costs across thousands of installed units.
Modern transformer cores frequently use step-lap joints, mitred corners, and controlled lamination stacking. These designs require accurate cutting and stable edge geometry.
Excessive burrs can prevent laminations from lying flat. The result may include:
Uneven stacking height
Gaps at mitred joints
Incorrect step-lap progression
Localized mechanical stress
Core-window dimensional errors
Difficulty maintaining clamping pressure
The result is not simply a rough edge. It is a dimensional and magnetic-circuit problem that can affect the entire transformer assembly.
Core noise is influenced by magnetostriction, clamping force, joint quality, and lamination movement. Burrs can cause small gaps and unstable contact between sheets, allowing laminations to vibrate under alternating magnetic flux.
In practical terms, poor burr control may contribute to:
Higher humming noise
Mechanical vibration
Loosened core clamping components
Increased customer complaints
More complex acoustic testing and correction
Therefore, controlling burr height is also part of transformer noise-reduction engineering.
Before changing equipment, we should identify the actual cause. Burrs are usually related to tooling, material, clearance, speed, alignment, or maintenance.
Slitting knives, shearing blades, and punching tools become dull after repeated production. A worn cutting edge compresses the steel before separating it, producing rollover, tearing, or secondary burrs.
Typical warning signs include:
Burr height gradually increasing during a production shift
Roughness appearing on one side of the strip
Uneven burrs across the coil width
Increased cutting force
More visible deformation near the edge
Blade clearance must match the electrical steel grade and thickness. Excessive clearance causes tearing and rollover. Insufficient clearance creates excessive compression, friction, and tool wear.
For precision production, I recommend establishing a documented clearance window rather than relying only on operator experience. The correct value depends on:
Steel thickness
Tensile strength
Coating type
Cutting direction
Blade geometry
Machine rigidity
If the upper and lower knives are not parallel, or if the shaft has excessive runout, the cutting load will vary across the strip. This creates inconsistent burr height and poor edge straightness.
A Transformer Core Cutting Machine should be checked for:
Knife parallelism
Shaft runout
Guide-roll alignment
Strip tracking
Servo positioning accuracy
Backlash in the feed system
Haoshuo systems can be configured for high-precision positioning, with a target accuracy of 0.01 mm for key positioning operations when properly installed, calibrated, and maintained.
Excessive line speed, unstable strip tension, or poor coil centering can increase edge deformation. Thin electrical steel is particularly sensitive to uncontrolled tension and vibration.
A stable process should maintain:
Controlled decoiler tension
Consistent feed speed
Correct strip alignment
Low machine vibration
Smooth acceleration and deceleration
Start by creating a measurable specification. Do not describe the edge as simply “good” or “bad.”
A practical internal specification may include:
| Control item | Example target |
|---|---|
| Burr height | ≤ 0.03 mm for precision applications |
| Positioning accuracy | ±0.01 mm target |
| Edge inspection | 100% visual or sensor inspection |
| Dimensional sampling | First piece and every production batch |
| Response to abnormality | Corrective action within 24 hours |
| Lamination insulation | Customer or project-specific requirement |
These values must be validated against the transformer design, steel grade, lamination thickness, and customer drawings. They should not replace contractual or laboratory requirements.
Burr problems may originate from the material itself. Before loading the coil, check:
Thickness variation
Coil edge damage
Surface coating condition
Rust or contamination
Camber and flatness
Rolling direction marking
Coil width and weight
For electrical steel characterization, manufacturers commonly refer to IEC 60404 series requirements and applicable material standards. ASTM A677/A677M may also be relevant for grain-oriented electrical steel, depending on the market and purchasing specification.
Record the heat number, material certificate, coating information, and inspection result for traceability.
Before production, verify the mechanical and control system.
A recommended checklist includes:
Clean the blade and guide area.
Measure knife sharpness and edge condition.
Check blade parallelism.
Inspect shaft runout.
Confirm feed-roll pressure.
Verify strip centering.
Calibrate servo positioning.
Confirm the programmed cutting length.
Check emergency stops and safety interlocks.
Run a low-speed trial cut.
Haoshuo’s Transformer Core Cutting Machine can be integrated with automatic positioning and production control functions to reduce manual adjustment. However, proper installation and operator training remain essential for achieving repeatable results.
Use a controlled setup sheet for each material grade and thickness. Record:
Material grade
Nominal thickness
Blade diameter
Blade clearance
Cutting speed
Strip tension
Number of cuts
Measured burr height
After a trial cut, measure the edge at several locations. For example, inspect the beginning, center, and end of the strip, plus both sides of the cut.
If the burr is high on both sides, review clearance and tool wear. If only one side is affected, investigate alignment, shaft runout, or guide-roll pressure.
A practical inspection system may combine:
Digital microscope
Optical measuring projector
Stylus profilometer
Calibrated burr-height gauge
High-resolution machine-vision camera
Insulation-resistance tester
For critical transformer cores, I recommend recording at least five measurement points per batch and using 100% visual inspection for visible edge damage. Automated vision inspection can improve consistency when production volume is high.
The inspection record should include:
Burr height
Burr direction
Rollover width
Edge cracking
Coating damage
Dimensional deviation
Operator and machine ID
Time of inspection
Burr control should be connected to electrical performance testing. Depending on the product and customer requirements, test procedures may reference:
IEC 60404-2 for magnetic measurement methods
IEC 60404-8-7 for grain-oriented electrical steel specifications
ASTM A677/A677M for grain-oriented electrical steel
ISO 9001 procedures for process control and traceability
Customer-specific insulation-resistance and core-loss requirements
The exact test method should be agreed with the transformer manufacturer or end user. A burr-free visual edge alone does not prove that the complete core will meet its magnetic requirements.
Haoshuo focuses on combining mechanical precision, process control, and production traceability. When selecting a Transformer Core Cutting Machine, I recommend evaluating more than maximum line speed.
Important capabilities include:
Stable cutting of thin electrical steel
Servo-controlled positioning
High-rigidity machine structure
Quick blade replacement
Adjustable cutting parameters
Automatic length and angle control
Recipe storage for different core designs
Operator safety interlocks
Inspection and production data recording
Technical support and spare-parts availability
For international buyers, after-sales response is also important. A supplier that provides 24-hour technical response, commissioning guidance, and documented maintenance procedures can help reduce production downtime.
The most effective machine is not necessarily the fastest machine. It is the machine that maintains burr height, dimensional accuracy, and repeatability throughout the production shift.
This usually indicates blade wear, thermal expansion, contamination, or changing strip tension.
Corrective actions:
Establish a blade-life limit.
Inspect the tool after a fixed number of cuts.
Clean the blade and guide components.
Monitor motor load and cutting force.
Compare first-piece and end-of-shift measurements.
This may result from knife misalignment, unequal clearance, shaft runout, or uneven strip tracking.
Corrective actions:
Check upper and lower knife parallelism.
Measure shaft runout with a dial indicator.
Verify coil centering.
Inspect guide-roll pressure.
Recalibrate the positioning system.
This situation can occur when the coating has been damaged or the laminations are electrically bridged.
Corrective actions:
Inspect the cut edge under magnification.
Measure interlaminar insulation resistance.
Review stacking pressure.
Check for burr folding during assembly.
Compare core-loss results with the material certificate.
Inspect mitred joints and step-lap overlap.
Uncontrolled manual adjustment creates inconsistent production results.
Corrective actions:
Create approved parameter recipes.
Lock critical settings with access control.
Train operators using sample defects.
Require first-piece approval.
Use a standardized inspection form.
Review process capability data weekly.
To make burr control more efficient, I recommend preparing the following resources:
Digital microscope with calibrated scale
0.01 mm-resolution measurement equipment
Dial indicator for shaft runout
Blade inspection magnifier
Machine-vision inspection camera
Digital torque wrench for tooling installation
Coil traceability labels
Preventive-maintenance checklist
SPC software for burr-height trends
IEC and ASTM material standards
Approved cutting-parameter database
Corrective-action report template
Statistical process control is particularly useful. Track burr height over time and define an early-warning limit below the final rejection limit. This allows maintenance teams to replace or adjust tooling before defective laminations reach stacking.
To apply this method today, we can follow this sequence:
Confirm the electrical steel grade and thickness.
Define the maximum allowable burr height.
Inspect incoming coil edges and coating.
Check machine alignment, blade condition, and runout.
Set clearance using the approved material recipe.
Run a low-speed trial cut.
Measure burr height at multiple points.
Approve the first piece before mass production.
Perform 100% visual inspection and scheduled dimensional checks.
Test insulation and magnetic performance according to the applicable specification.
Record defects and corrective actions.
Review trends and replace tooling before quality deteriorates.
Understanding How Cutting Burr Affects Transformer Core Performance allows manufacturers to control problems before they become electrical, mechanical, or commercial failures. Burrs can damage interlaminar insulation, increase eddy-current loss, reduce stacking accuracy, raise noise, and create expensive rework.
With a properly maintained Haoshuo Transformer Core Cutting Machine, a documented blade-clearance procedure, 0.01 mm positioning control, calibrated inspection tools, and 100% visual inspection, manufacturers can create a more stable core-cutting process. The next step is practical: measure your current burr height, review your machine settings, inspect tool wear, and compare results with your transformer core specification.
