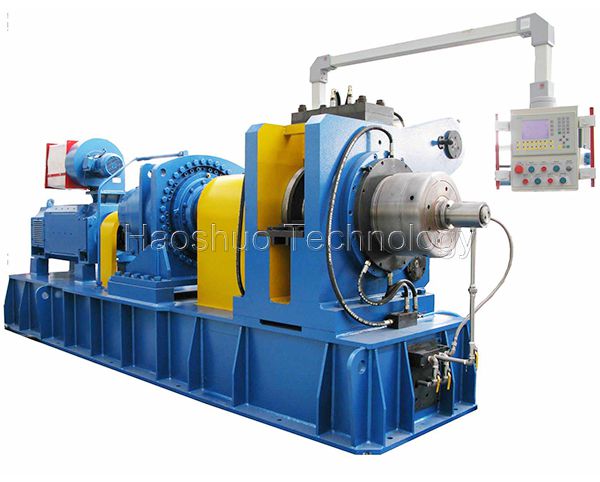

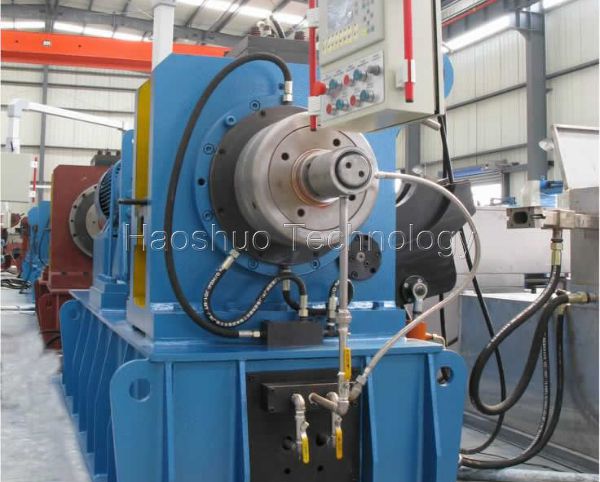

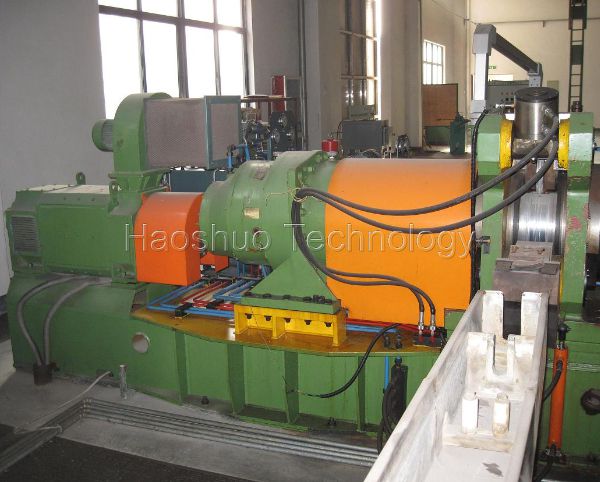

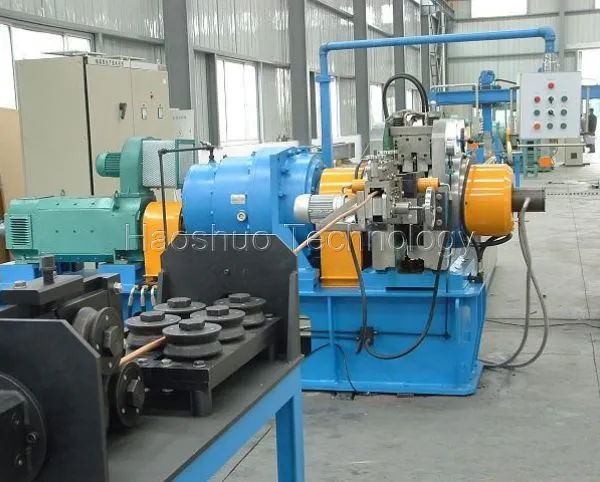

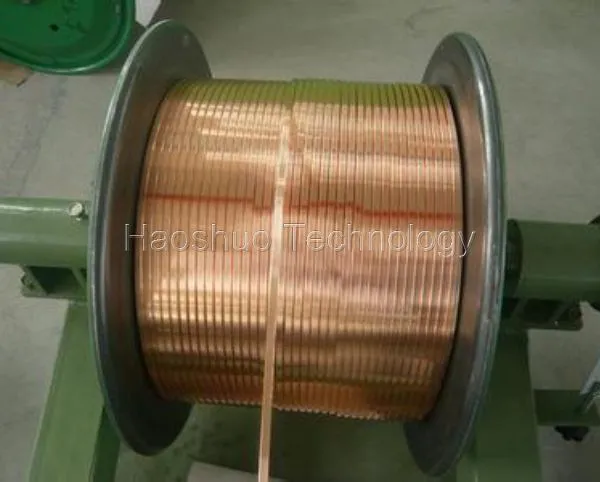

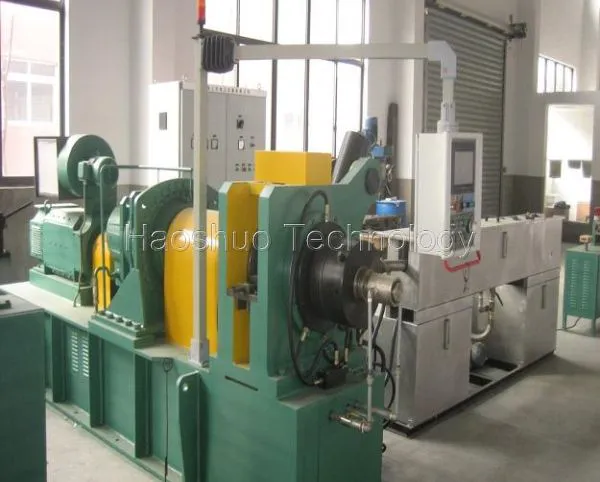

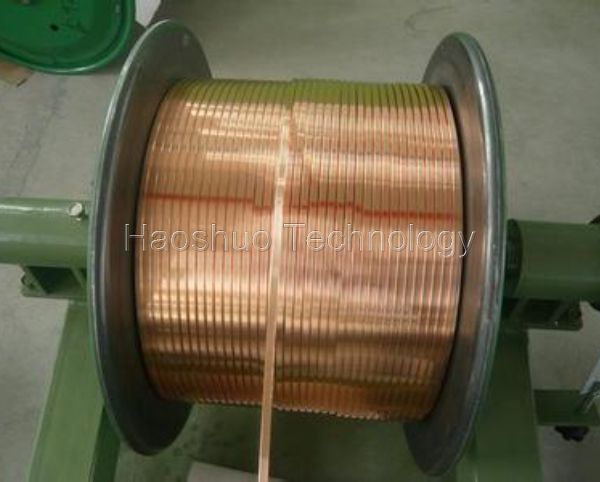

The flat copper wire extrusion line is meticulously crafted to produce high-quality flat copper wire from copper rods through a continuous extrusion process. The line feeds the rod material continuously into a revolving squeezing wheel equipped with a groove. The tremendous force of friction and extrusion generates ample heat, causing the material to re-crystallize. Subsequently, the material is extruded and shaped through specially designed dies. The resulting flat copper wire boasts a smooth and lustrous surface, free from any burrs. This advanced extrusion line ensures precise and flawless flat copper wire production, meeting the highest standards in the industry.
Line component
| Copper rod pay-off device | 1 set |
| Feeding and straighten device | 1 set |
| Copper continuous extrusion line | 1 set |
| Cooling and anti-oxidation system (with drying) | 1 set |
| Length counter | 1 set |
| Wire winder | 1 set |
| Control system (with touch screen) | 1 set |
| Hydraulic and lubricating system | 1 set |
Main parameter
| Main extrusion machine parameter | |
| Machine model | TJ250 |
| Extrusion nominal diameter | φ250mm |
| Rated rotation speed | 11rpm |
| Main motor | 45kw |
| Raw material copper rod | |
| Diameter | Ф8mm |
| Diameter tolerance | ±0.2mm |
| Yield strength | 160Mpa |
| Product parameter | |
| Section area | 8-60mm² |
| Max width | Max 18mm |
| Product min thickness | 0.8mm |
| Output capacity | 144kg/h |
| Property standards | As per GB5585.1-85 |
| Average productivity | 100- 180kg/h |
| Electricity | 75Kw |
| Spilth percentage | 1-3% |
| Workshop Dimension | |
| No less than | Length 22M, Width 7M, height 4M |
| Cooling water | Cooling tower 80 m³/h 0.5m² |
| Air compressor | 0.7 Mpa，2 m³/min |
| Operator | 2 operators |
