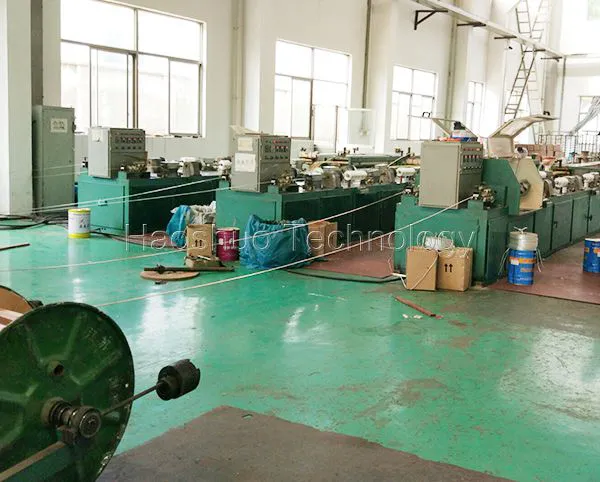

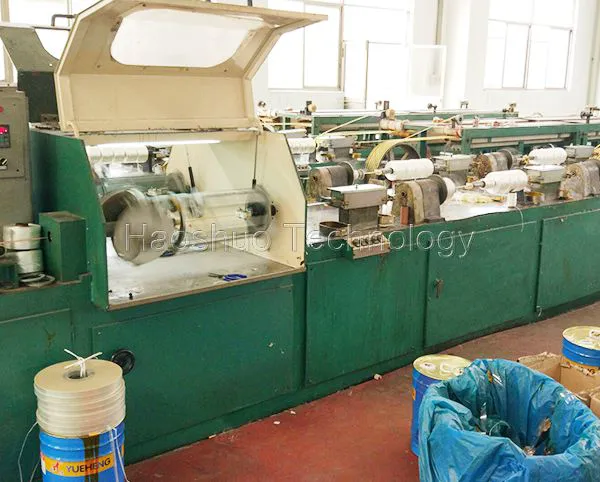

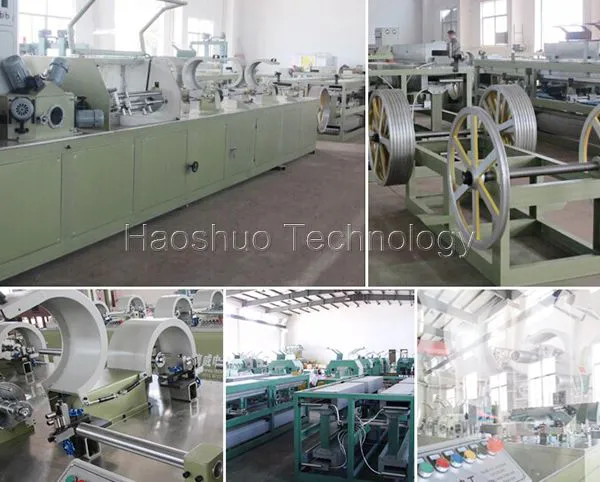

The fiberglass taping machine is specifically designed for straightening and uniformly taping both fiberglass or film to copper/aluminum wires with a section area of 5-40mm². It features a twin-head structure, ensuring consistent configuration and enhancing productivity.
With the addition of a high-frequency sintering device, this line is capable of producing special film-taped magnet wires, providing versatile capabilities to meet various production needs. This innovative machine guarantees efficient and precise straightening and taping processes, resulting in high-quality magnet wires suitable for a range of applications.
Production flow
Pay-off à straightening à polishing & cleaning à taping film à varnishing à concentric taping à varnishing à concentric taping à varnishing à towing à baking à varnishing à baking à auxiliary towing device à applying self-adhering glue à baking à auxiliary towing à length counting à winding
Main specification
| Item | Data |
| Production range | 5-40 mm² |
| Tapping layers | 1 or 2 or as per order |
| Film wrapping pitch | 5-20mm, stepless adjustable |
| Fiber tapping pitch | 2.5-12mm, stepless ajudstable |
| Production speed | 1-6m/min |
| Baking oven | 2000mm X 8 pieces |
| Main driving motor | 3kw X 2 |
| Total line consumption | About 60KW |
| Line dimension | About 25m X 3.5m |
