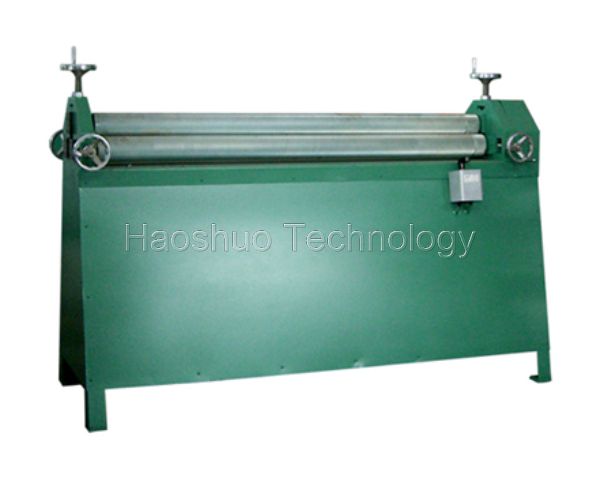

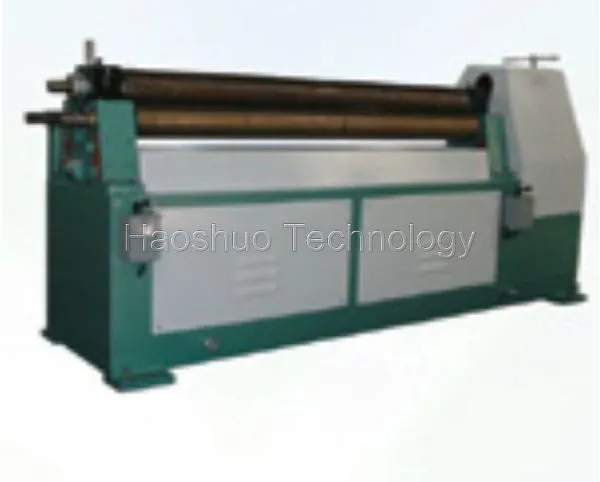

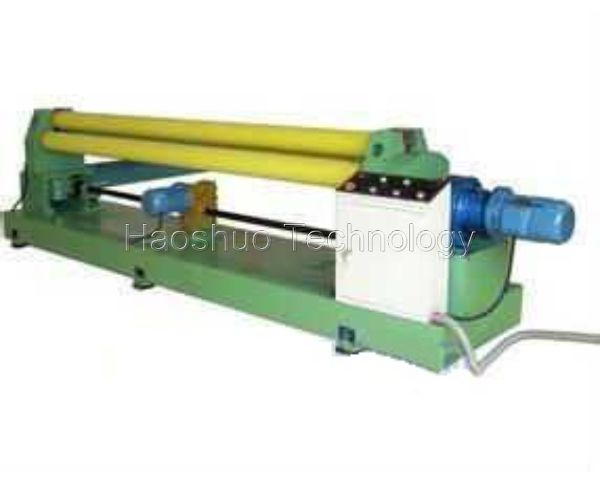

The paper board roll bending machine is of three-roll structure for bending round insulation paper tubes. It can also bend 1mm thickness steel, aluminum and copper, 0.5mm stainless steel, etc.
Main specifications
| Item | SDKT-I | SDKT-II |
| Suitable material | Laminated paperboard | |
| Board thickness | 1-3mm | 1-6mm |
| Bending diameter | Φ90-800mm | Φ100-1500mm |
| Max. width | 1000mm | 2000mm |
| Motor power | 1.5kw | 3kw |
| Dimension | 420X1300X1000mm | 550X1500X2300mm |
