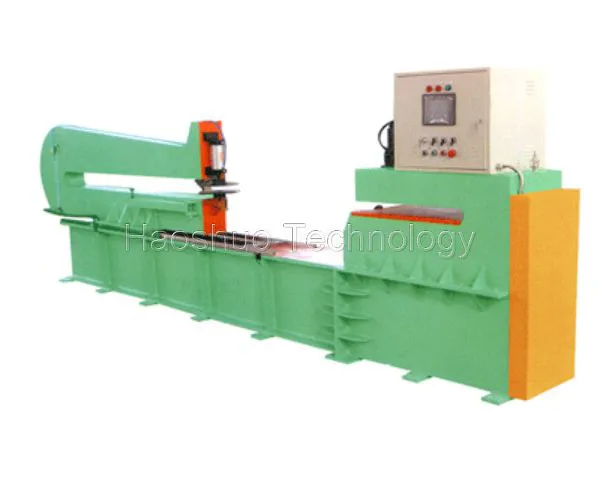

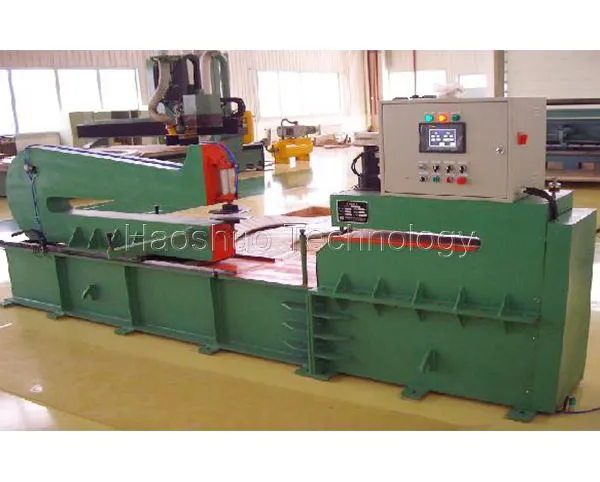

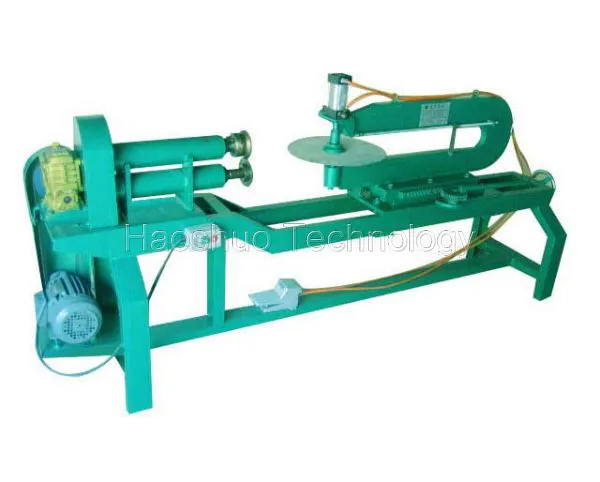

The paperboard circular shearing machine is used to cut series of insulation paper board, fiberglass board, steel plate and so on. The knife rest can be adjusted for different diameter of round or ring plates.
| Parameter | Unit | JY-1000 | JY-2000 |
| Main power | kW | 0.75 | 1.5 |
| Round diameter | mm | 100 - 1000 | 300 – 2000 |
| Cutting thickness | mm | 0.5~ 3 | 0.5-3 |
| Outer dimension | mm | 1250×500×1000 | 2000x500x1000 |
| Machine weight | Kg | 400 | 800 |
