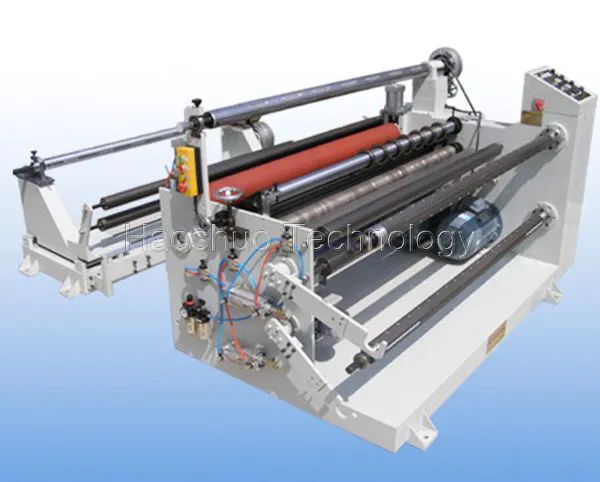

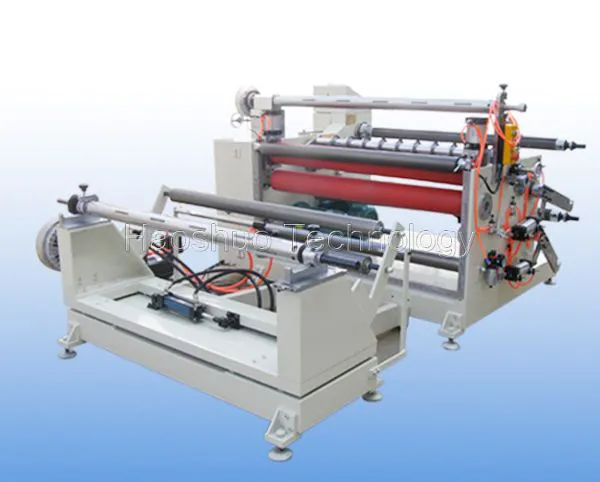

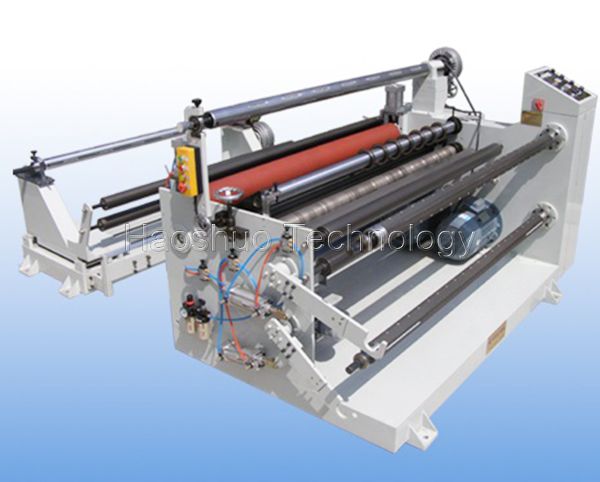

Paper Roll Slitting Machine

Share

The paper roll slitting machine is specifically designed for longitudinal cutting of wide paper rolls into various width paper strips, which are then rewound into rolls. Offering high precision and high-speed slitting capabilities, it can also efficiently cut materials such as PP, PE, PVC, copper, and aluminum foil.

The decoiling and recoiling processes are equipped with pneumatic tensioning, ensuring stable and consistent tension during cutting and rewinding. Additionally, the decoiling system features automatic calibrating for center adjusting, optimizing the cutting process for precise and reliable results.

Model HX-1300FQHX-1600FQ
Max feeding Width1300mm1600mm
Main Engineer Power6kw6kw
Speed 80m/min80m/min
Size2400*2000*1300mm2400*2300*1600mm
Weight1200kg1500kg
Unwinding Diameter600mm800mm
Winding Diameter450mm450mm
Precision±0.1mm±0.1mm
Power380v 50hz380v 50hz
*
*
*
*
