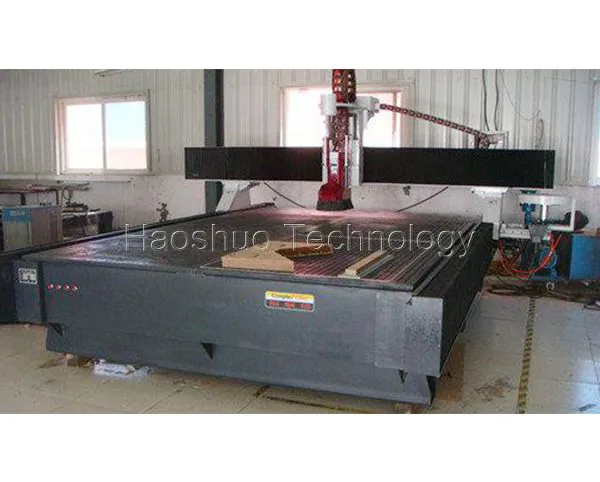

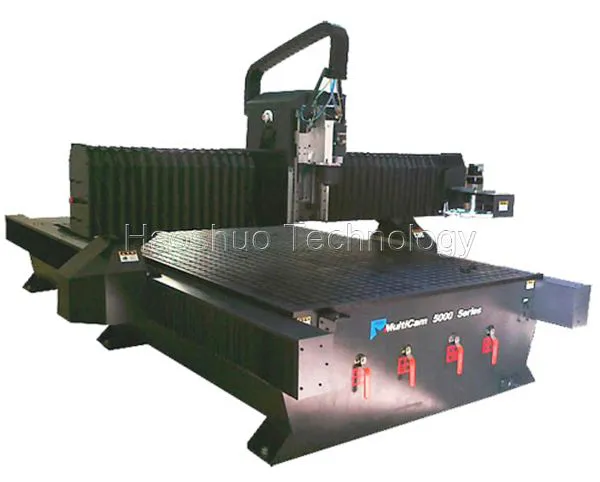

CNC Insulation Parts Machining Center

The CNC Insulation Parts Machine Center is specifically tailored to process insulation parts used in transformers. It is capable of handling various materials, including plywood, laminated wood plates, laminated paper plates, and epoxy plates. The machine seamlessly combines cutting, notching, engraving, drilling, and milling functionalities, providing a comprehensive solution for precise and efficient insulation part production. Its versatility and integrated capabilities streamline the manufacturing process, ensuring high-quality and reliable transformer insulation parts.

Main features

1. The machine features a sturdy full-steel structure with a stress-released and stable frame, designed using FEA analysis.

2. Equipped with a full automatic lubricating system for efficient maintenance.

3. Utilizes world-famous brand components, including Yaskawa AC servo system and Italian-imported automatic blade-changing main spindle.

4. Employs high-precision transmission mechanisms, such as imported linear guides for X and Y axes and high precision ball screws for X and Z axes.

5. The vacuum adsorbing worktable with a pneumatic cycling system ensures minimal air consumption.

6. Special tools made from imported rigid alloy guarantee smooth and burr-free insulation processing.

7. Equipped with a big capacity dust collecting system with a 200mm diameter collecting pipe.

8. Incorporates a coolant spraying system to cool both the tools and workpieces during operation.

Specifications
