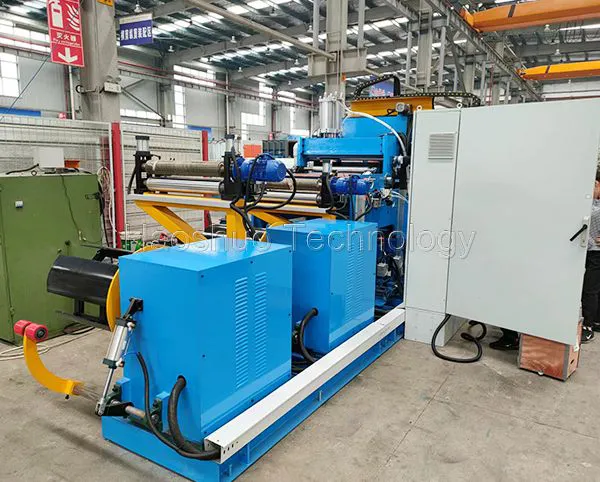

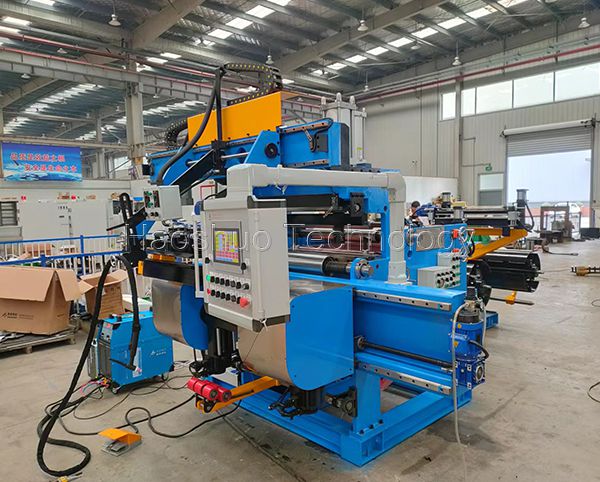

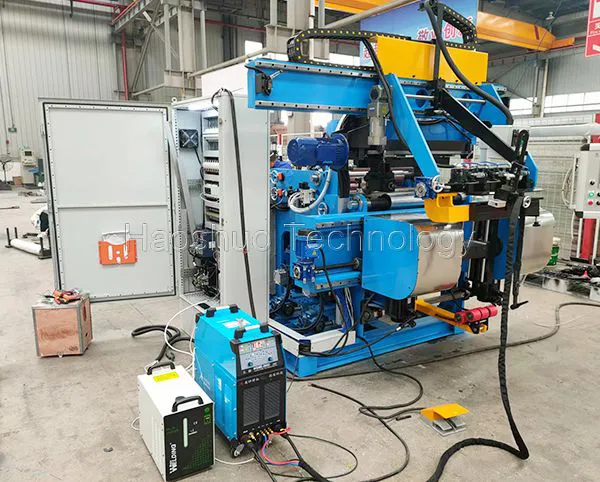

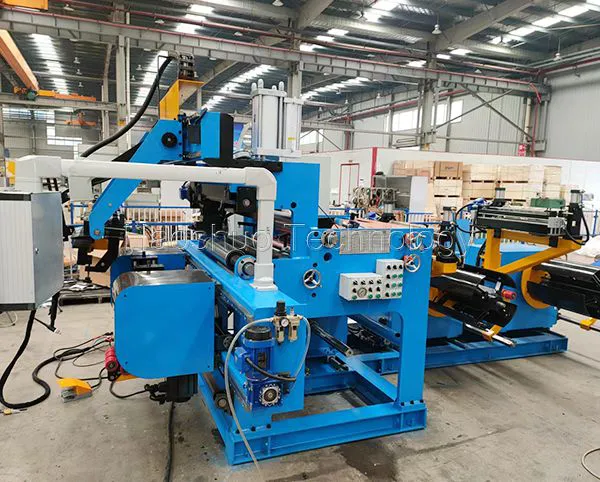

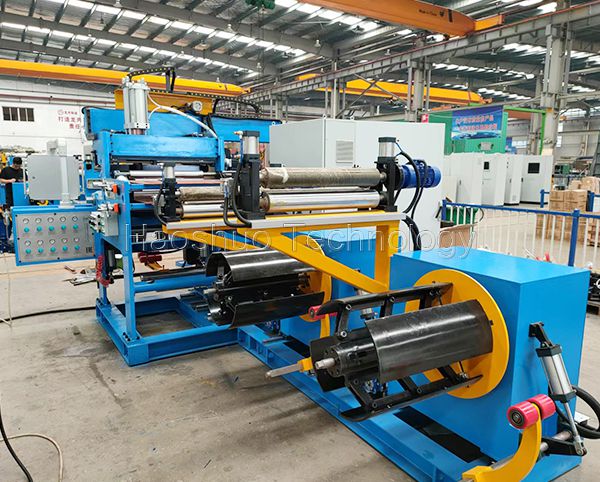

Two Chucks Reactor Double Layer Foil Winding Machine with Electric Antitension

This Reactor foil winding machine is dedicated to the reactor industry. Compare to the transformer foil winding machine, it has two chucks with two servo motors instead of a winding shaft. If you required, this machine can adopt electric anti -tension, which can make the coil winding tighter.

This machine can wind the coil directly on the iron core column with square section. The winding faceplate and tailstock supporting faceplate have clamping arms suitable for square core. The clamping thickness of the clamping arm can be adjusted. The adjustment mention is screw type, the adjustment range is 0-360mm, and the width range of the clamping arm is 0-180mm to adapt to different specifications of core. The winding faceplate and tailstock supporting faceplate are double winding motors, and both ends have the same amount of winding torque.

The double guide rail protection of the fixture guarantees the good synchronization of the clamp up and down. (Other factories do not have double guide rails, there will be a gap when manufacturing and the gap will be larger and larger. There will be no synchronization, what's more, core will be twisted. Install the guide rail makes up for such shortcomings.) One set of equipment has two synchronous clamps.
