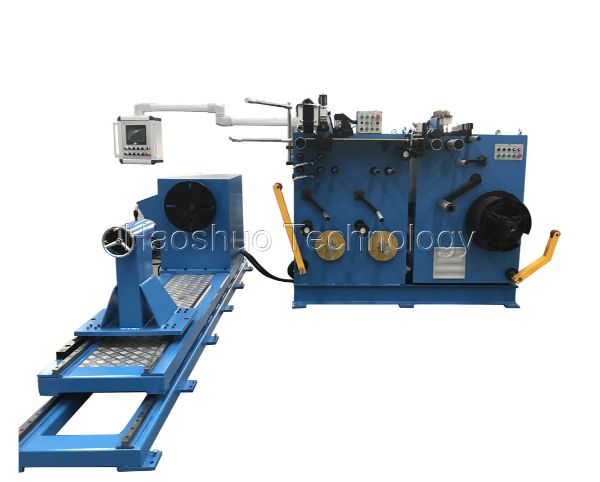

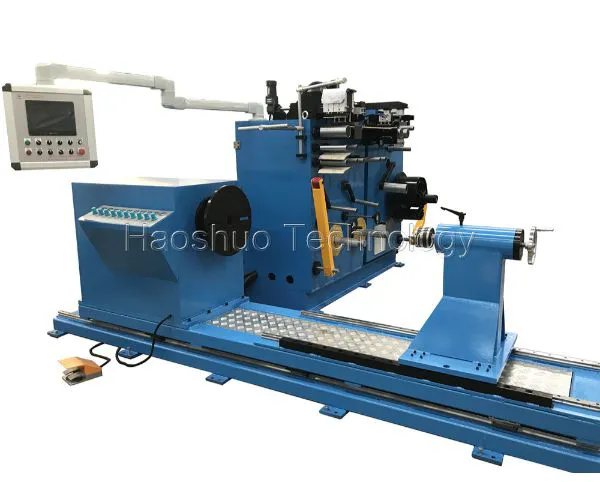

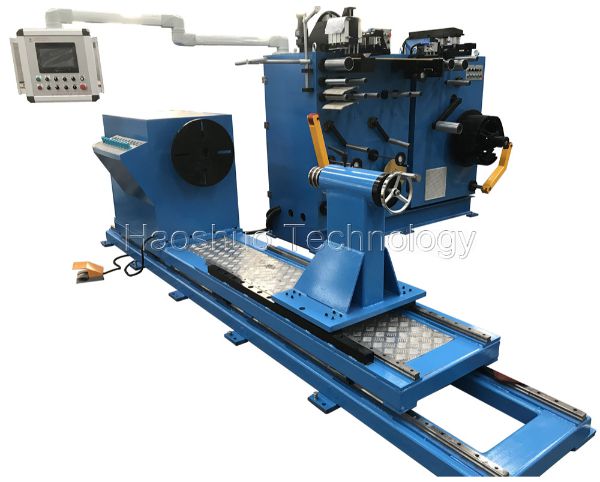

High Voltage Transformer Foil Winding Machine

High voltage transformer foil winding machine is a dedicated winding device for transformer foil winding which is wound in a segmented manner on the winding mold to wind a winding that meets the process requiements. All parameters are set on the man-computer interface and will automatically stop when the set value is reached.

Main machine components

1.VF controlling stepless speed recoiling unit

2.Main machine frame

3.Foil decoiler, 1 set

4.Burr removing device & foil clean device, 1 set

5.Centering system, 1 set

6.Layer Insulation decoiler, 2 sets

7.AC and DC water-cooled TIG welding device, 1 set

8.PLC controlling and 10.4 inch touch screen operation system

Specification
