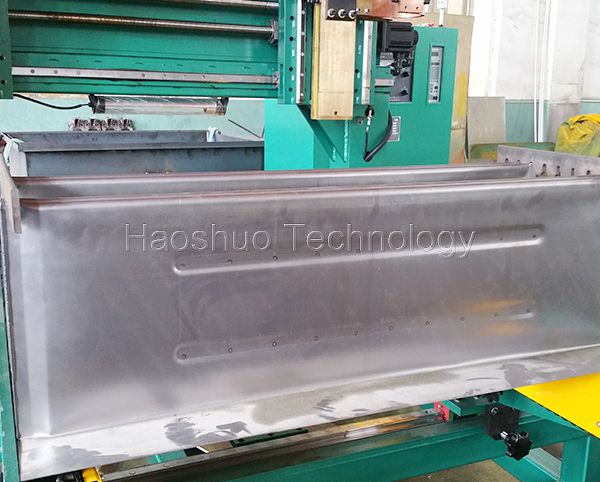

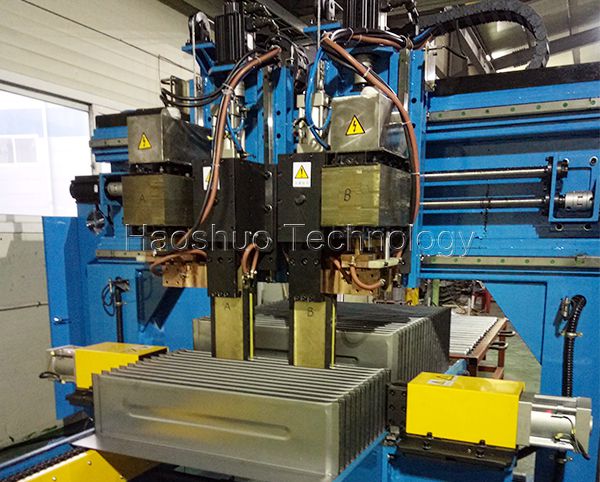

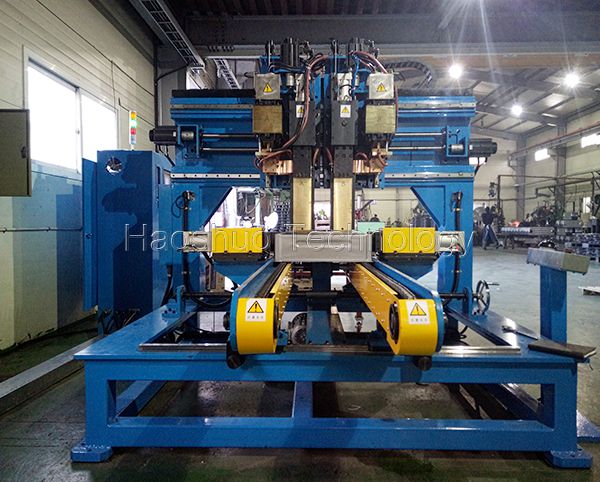

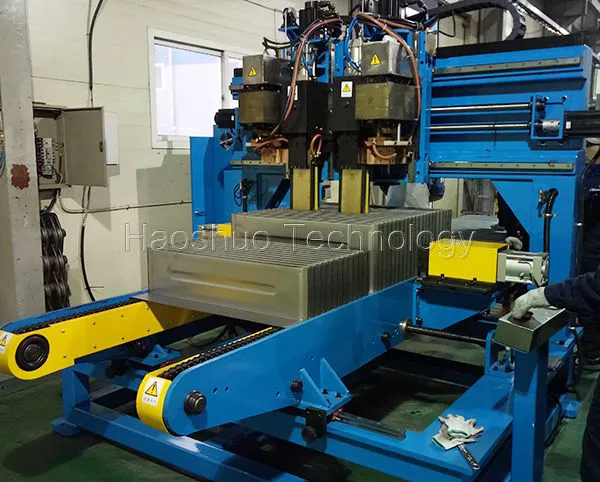

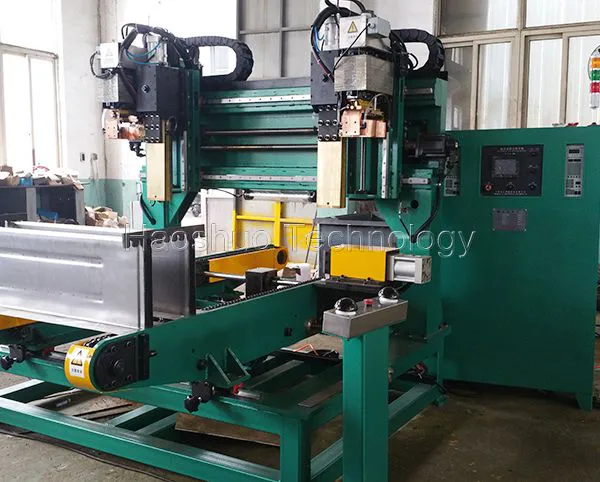

The embossment spot welding machine is special designed for spot welding on the reinforcing ribs of the corrugated fin walls. It mainly consists of chain conveyer, gantry beam, resistance welding machine and torch, servo transmission system and controlling system, etc. With its advanced PLC system, the machine operates in a fully automatic mode, streamlining the welding process for increased efficiency and accuracy. The embossment spot welding machine's automated functionality ensures consistent and precise spot welding on the reinforcing ribs, contributing to the overall strength and quality of the corrugated fins.
Features
● Delta servo motor system, with precision controlling
● 6 moving directions, all the welding parameters can be set on system
● PLC automatic control, touch screen operating
Specification
| Item | Data |
| Welding table forwarding | servo motor 1.5KW |
| Welding head up and down moving | servo motor 0.75KW*2 sets |
| Welding head linear moving | servo motor 0.75KW*2 sets |
| Capacity of the welder | 50KVA, 2 sets |
| PLC system | Delta brand |
| Touch screen | Delta brand |
