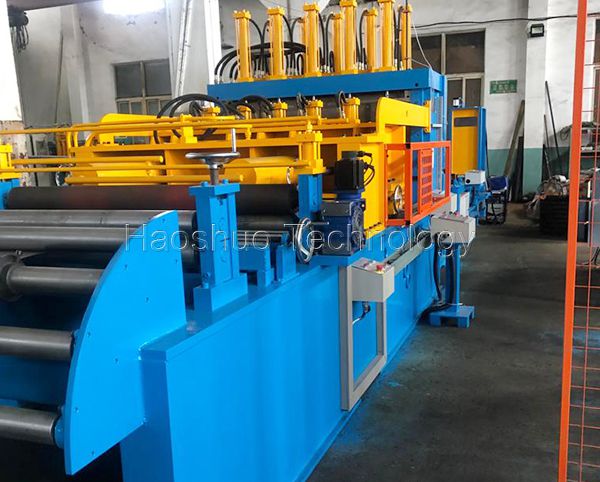

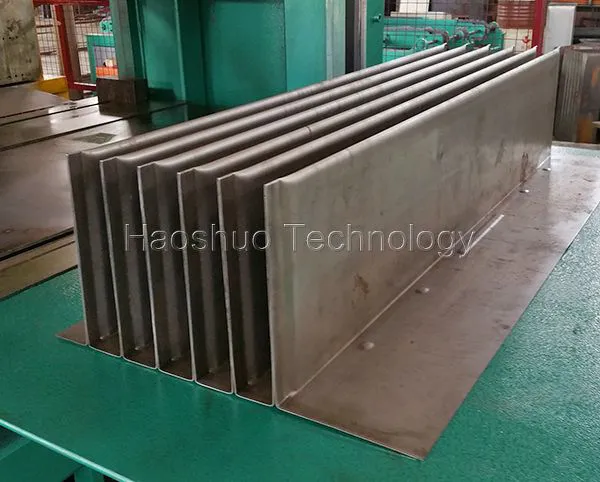

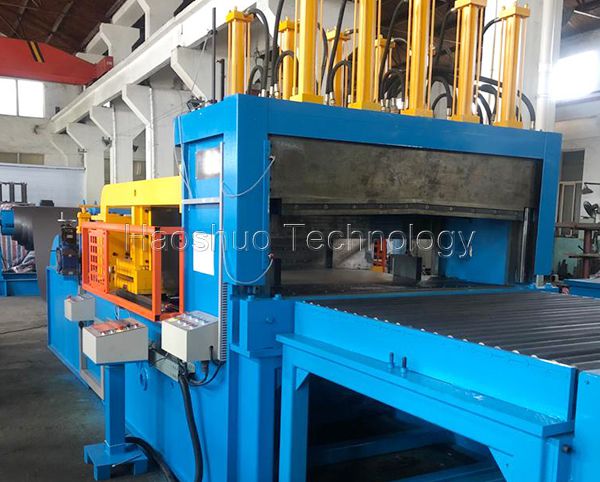

Corrugated fin forming machine is used to produce corrugated plate for transformer wall. The work flow is uncoiling – feeding – folding – pressing – cutting.
Description:
The main power of the corrugated fin forming machine is hydraulic.Hydraulic pump motor use Siemens brand motor, and all valves and pump are using Yuken brand products with very high quality.

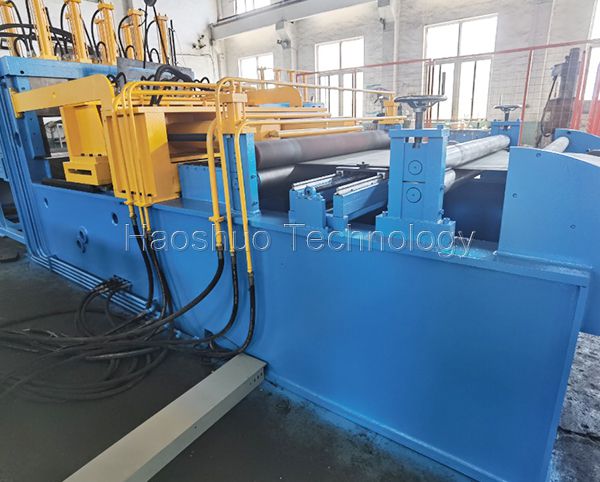

The feeding and length measuring adopt servo motor and grating scale , with high precision and high automation. No need manual operation to change the sizes. The machine adopts PLC automatic controlling, touch screen operating. The corrugated plates made by this machine are with high quality and high precision.
Features:

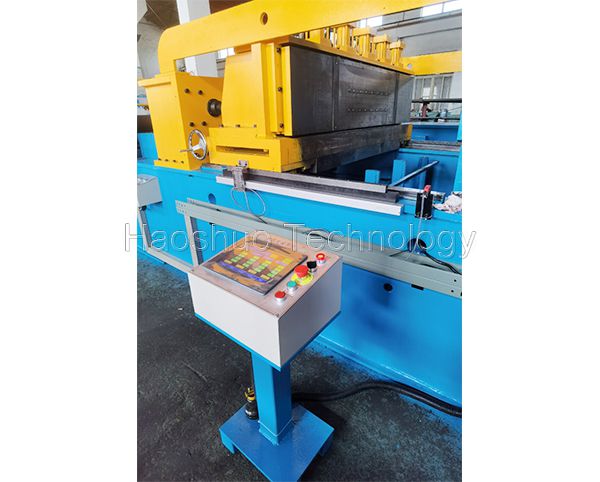

● Schneider PLC system with touch screen operating
● Durable high quality hydraulic power system
● Delta servo motor precision feeding system
● Enhanced high strength machine structure
Main Technical Data
| Machine type | A1300x400 | A1600x400 |
| Suitable material thickness | 1-1.5mm | 1-1.5mm |

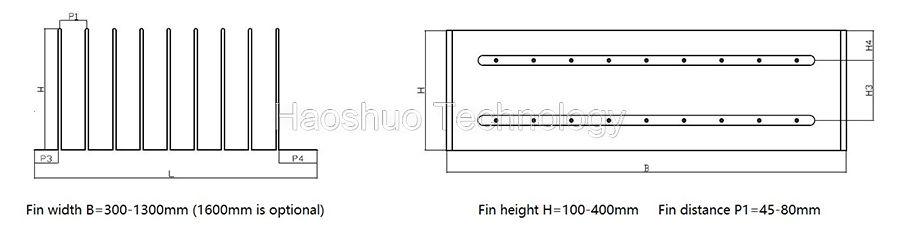

| Forming width | 300-1300mm | 300-1600mm |
| Fin height | 50-400mm | 50-400mm |
| Pitch distance | 45-80mm | 40-100mm |
| Corrugated plate length | 300-2000mm | 300-2000mm |
| Working speed | Approx. 22s per fin | Approx. 22s per fin |
| Main Hydraulic power | 22KW+30KW, 2 motors | 22KW+30KW, 2 motors |
| Hydraulic pressure | 2-20Mpa | 2-20Mpa |
| Feeding power | Servo motor 2KW, pinch roll for feeding | Servo motor 2KW, pinch roll for feeding |
| Fin height measuring | Grating scale | Grating scale |
| Cutting | Hydraulic cutting | Hydraulic cutting |
| Cooling | Industrial air condition type cooler | Industrial air condition |
| Controlling | Schneider PLC | Schneider PLC |
| Touch screen | Schneider 10 inches | Schneider 10 inches |
| Total weight | 12 tons approx | 20 tons approx |
