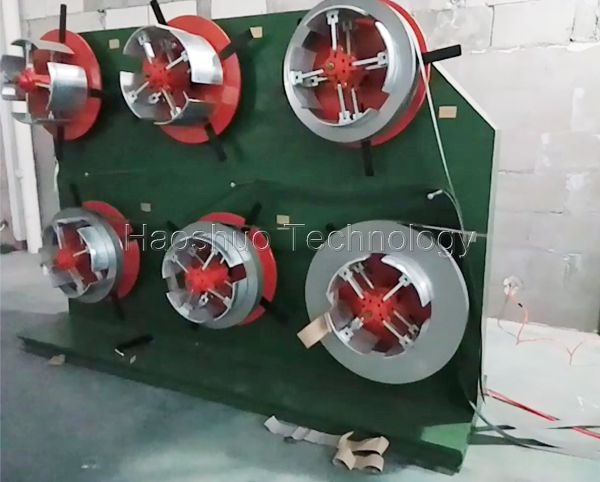

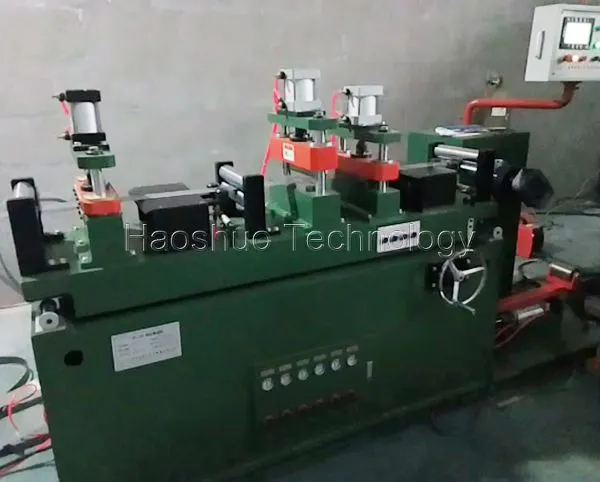

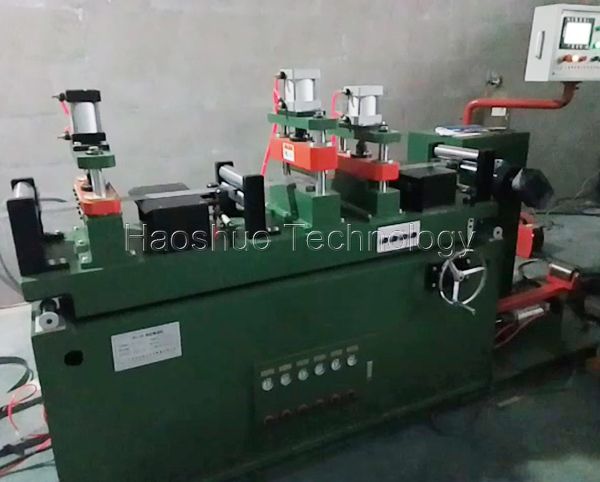

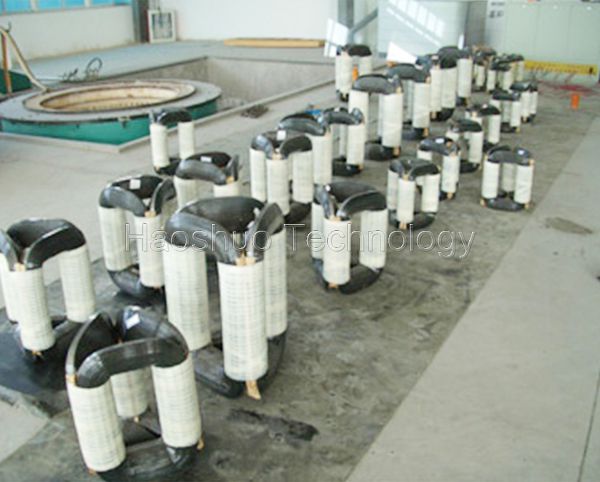

The wound core winding machine is specially designed to wind and create cores in various sections, including round, trapezoidal, round + trapezoidal combined, and rectangular shapes. Its components include a decoiler, positioning & tensioning device, winding device, and control system.
Description
The wound core winding machine offers adjustable winding and damping forces, which can be easily controlled using a pneumatic pressure meter display. Additionally, it is equipped with an electronic counting device to accurately count the turns during the winding process. This versatile and efficient machine ensures precise and reliable core winding for different section shapes, catering to diverse production needs.
Specifications
| Item | Data |
| Suitable core shape | Plane & tridimensional |
| Suitable core sections | Round, trapezoidal, round + trapezoidal, rectangular |
| Max. core column diameter | Plane 230mm; tridimensional 300mm |
| Max. core weight | 1.5t |
| Suitable transformer capacity | Plane 30-800kva, tridimensional 30-1600kva |
| Suitable strip width | Min. 8mm-max. 340mm |
| Max. turning radius | 650mm |
| Max. winding speed | 55rpm (average speed 0-30rpm) |
| Inverter for speed regulator | Mitsubishi |
| Main Driving motor power | 5kw |
| Max. winding torque | About 1300Nm |
| Machine dimension | About 8m X 1.5m X 2.5m |
| Machine weight | About 3500kg |
