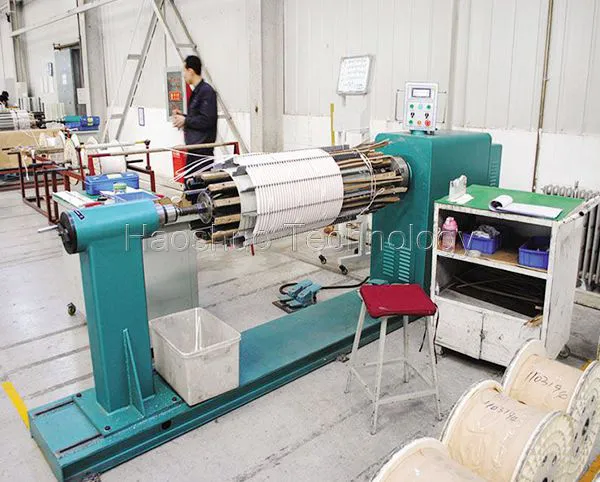

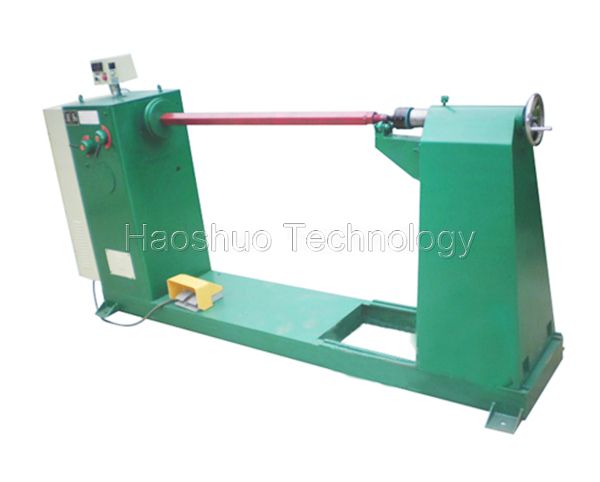

This coil winding machine is primarily composed of a machine base, gear box, tail supporter, winding shaft, control switch, and other essential components. Its design caters specifically to power transformer coil winding needs.
Main features
The tail supporter is adjustable, allowing for winding coils in various sizes.
Intelligent counter with a presettable turning number function.
With counting record and memory feature, in case of power off.
Main Specification
| Model | LGR-1W | GDY-3W | GDY-5W | GDY-10W |
| Capacity（t） | 1 | 3 | 5 | 10 |
| Speed(rpm) | 0-100 | 0-60 | 0-30 | 0-15 |
| Center height (mm) | 900 | 1200 | 1400 | 1500 |
| Center distance（mm） | 600-1400 | 800-2000 | 1500-2800 | 2000-3500 |
| Main power (KW) | 4 | 5.5 | 7.5 | 15 |
| Chuck diameter（mm） | 400 | 600 | 1000 | 1200 |
| Winding shaft (mm) | 40*40 | 70*70 | 70*70 | 70*70 |
