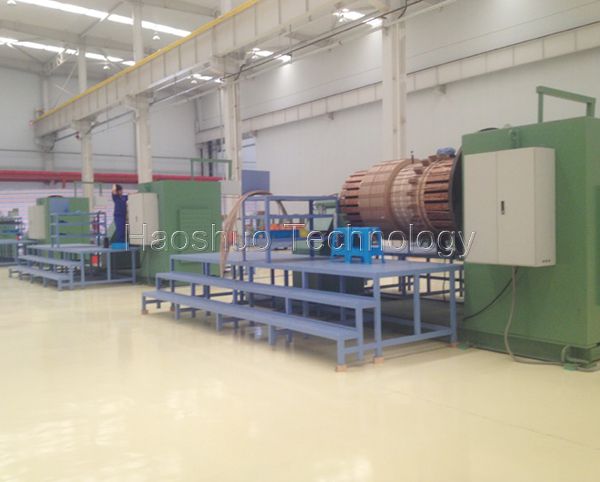

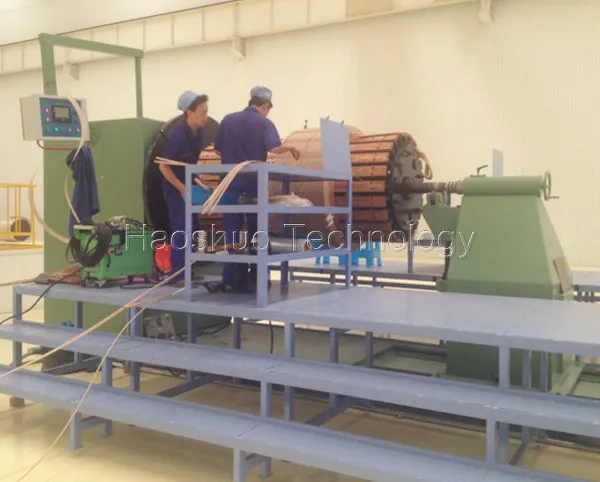

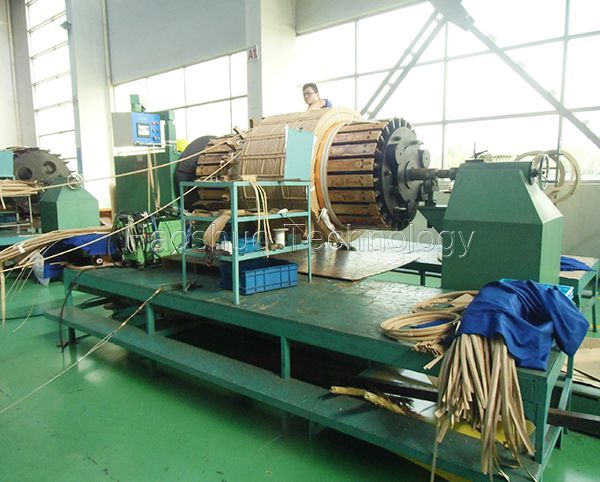

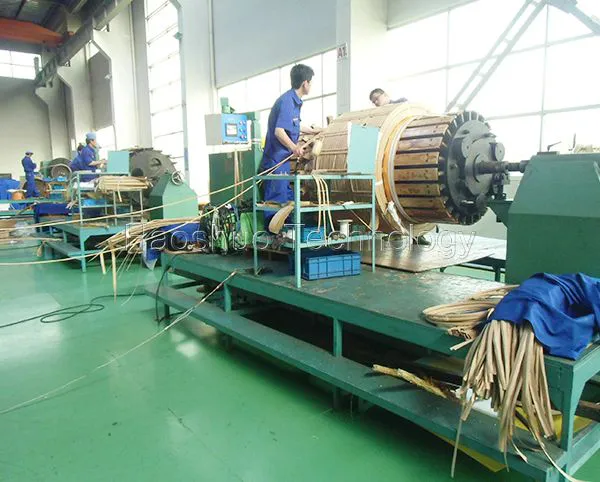

The horizontal coil winding machine is specifically designed for winding coils of large capacity transformers and reactors ranging from 5 tons to 35 tons. It offers the option to equip vertical and horizontal compacting devices, ensuring a more compact and even winding, thus guaranteeing the quality of the winding coils.
Description
Our horizontal coil winding machine is equipped with an advanced electronic counter capable of counting both positive and reverse turns. Additionally, it features a power-off memorizing function to ensure counting data is retained even in the event of a power outage.
Main Specification
| Item | WRJ-5 | WRJ-10 | WRJ-15 | WRJ-20 | WRJ-25 | WRJ-35 |
| Max load/t | 5 | 10 | 15 | 20 | 25 | 35 |
| Max coil diameter/mm | 2500 | 2500 | 2800 | 2800 | 3000 | 3000 |
| Chuck diameter/mm | 1000 | 1200 | 1400 | 1600 | 1800 | 2000 |
| Distance between chuck and tail/mm | 2800 | 3500 | 3800 | 4400 | 4600 | 4600 |
| Height of main spindle/mm | 1400 | 1500 | 1600 | 1800 | 1800 | 1800 |
| Speed of main spindle/ r/min | 0-30 | 0-15 | 0-10 | 0-10 | 0-10 | 0-7 |
| Max. Torque/Nm | 8000 | 15000 | 20000 | 25000 | 30000 | 40000 |
