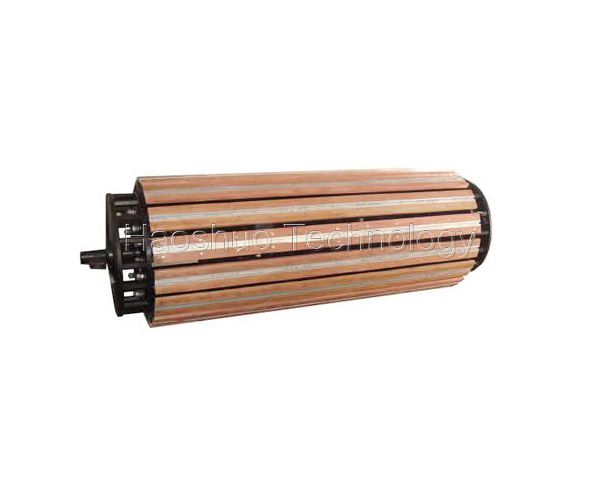

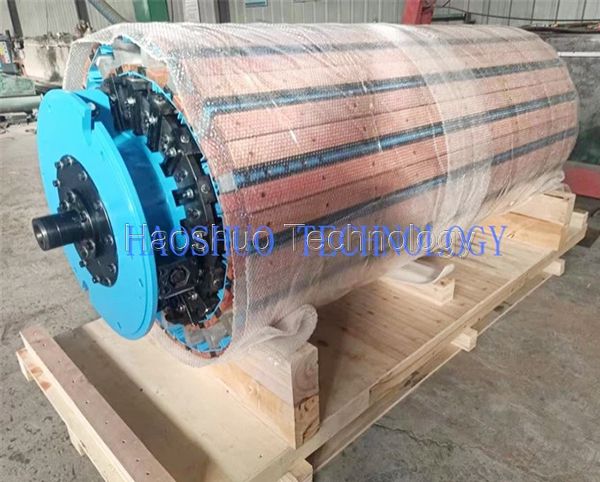

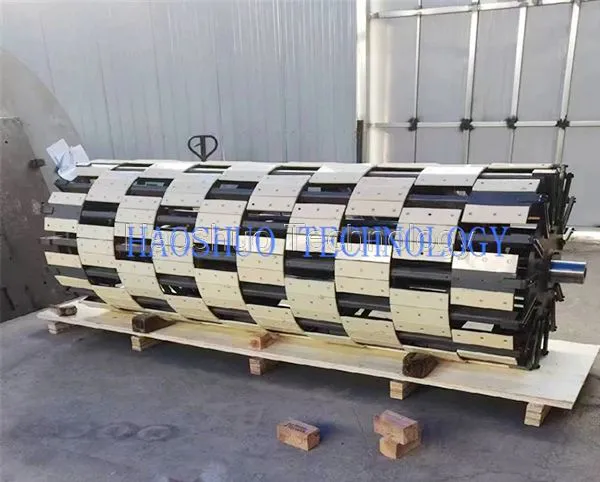

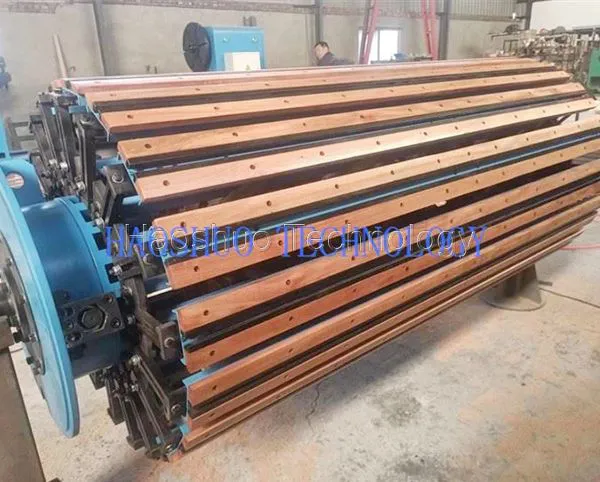

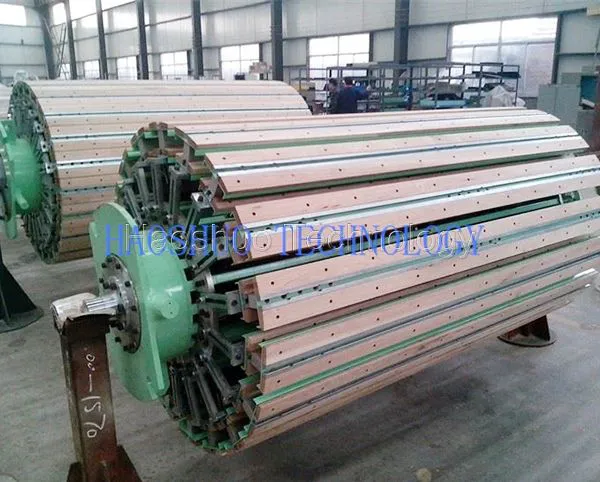

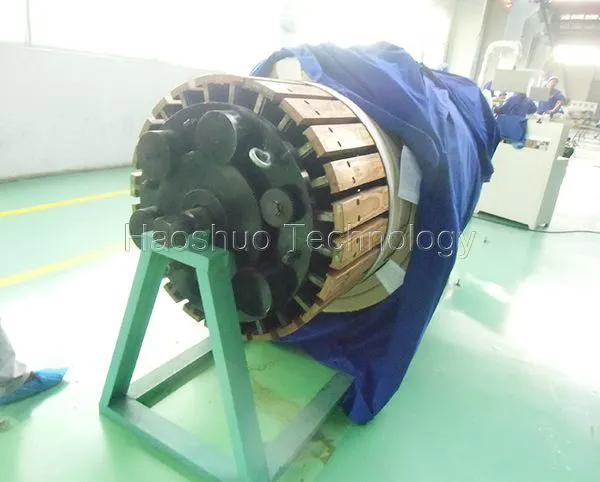

The Mandrel is specially designed for use in coil winding machines. It features an expandable outer diameter, motorized or manual adjustable. Its large diameter variation makes it convenient to take-off. Additionally, it suitable for both horizontal and vertical coil winding machines.
Main Specification
| Spec | Expanding range/mm | Expanding range with pad/mm | Max coil weight/t | Bar length |
| KTM-1 | Φ200-Φ300 | Φ300-Φ400 | 1 | 1200 |
| KTM-2 | Φ300-Φ400 | Φ400-Φ500 | 2 | 1200 |
| KTM-3 | Φ400-Φ500 | Φ500-Φ600 | 2 | 1500 |
| KTM-4 | Φ500-Φ600 | Φ600-Φ700 | 3 | 1500 |
| KTM-5 | Φ600-Φ700 | Φ700-Φ800 | 5 | 2000 |
| KTM-6 | Φ700-Φ800 | Φ800-Φ900 | 5 | 2000 |
| KTM-7 | Φ800-Φ900 | Φ900-Φ1000 | 8 | 2000 |
| KTM-8 | Φ1000-Φ1200 | Φ1200-Φ1400 | 10 | 2500 |
| KTM-9 | Φ1200-Φ1400 | Φ1400-Φ1600 | 10 | 2500 |
| KTM-10 | Φ1400-Φ1600 | Φ1600-Φ1800 | 10 | 2500 |
| KTM-11 | Φ1600-Φ1800 | Φ1800-Φ2000 | 15 | 3000 |
| KTM-12 | Φ1800-Φ2000 | Φ2000-Φ2200 | 15 | 3000 |
