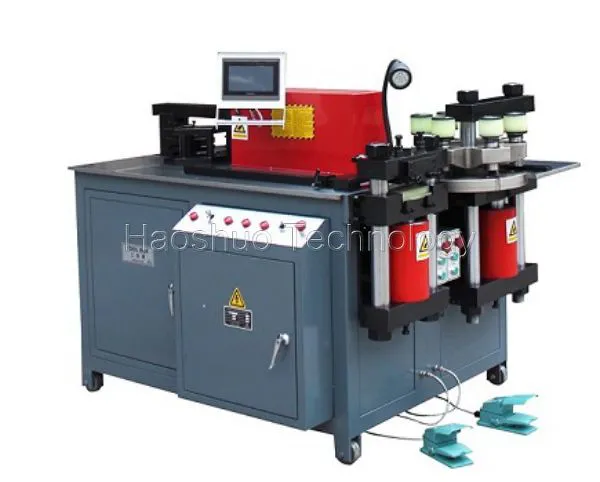

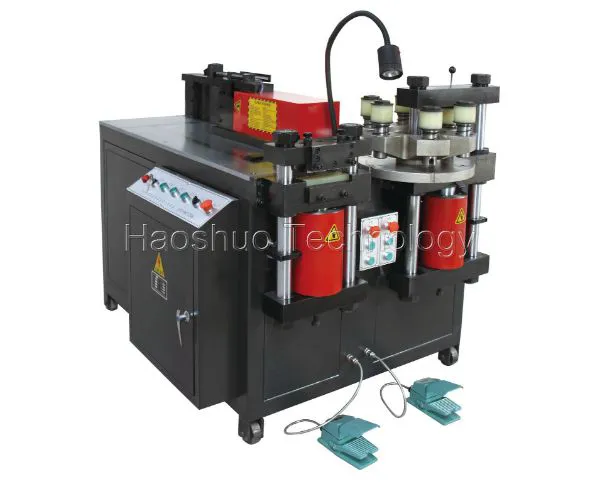

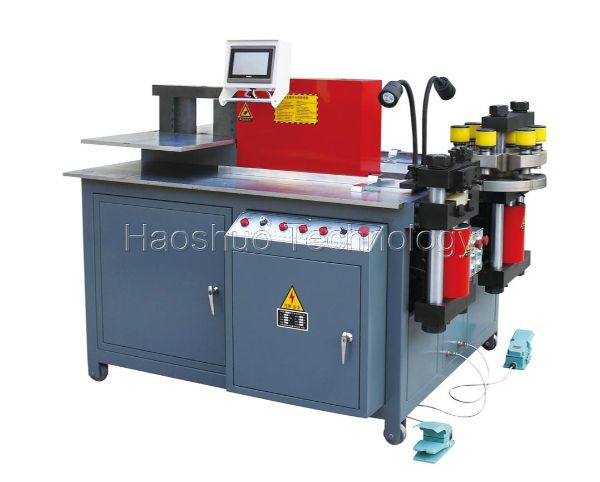

The busbar machine is specifically designed to manufacture aluminum and copper busbars. This versatile machine combines the processes of punching, bending, and cutting. Additionally, the machine can perform other functions, such as embossing, twisting, flattening, and pressing tie-ins, providing a comprehensive and efficient solution for busbar production. Its multi-functional capabilities ensure precise and high-quality results for a variety of busbar manufacturing needs.
Production Application
This type hydraulic busbar processing machine is mainly used for bending cutting punching copper or aluminum busbar. It is easy to operate and high production efficiently. It is widely used in switchboard and power transformers fabrication.
Main Characters
It has three units: Punching unit, shearing/ cutting unit and bending unit. The three units can work at the same time without any interference. The working stroke of each processing unit is adjustable to save time and improve the work efficiency.
Main Parameter of the Machine
| Item | 303ESK | 503ESK | 803ESK |
| Max. force | 300KN | 500KN | 800KN |
| Punching hole size | 4.3-25mm | 4.3-34mm | 4.3-36mm |
| Material thickness | max. 12mm | max. 16mm | max. 20mm |
| Material width | max. 150mm | max. 200mm | max. 260mm |
| Vertical bending width | max. 100mm | Max.120mm | Max.120mm |
| Min. bending angle | 90 degree | 90 degree | 90 degree |
| Motor power | 3 x 4KW | 3 x 5.5KW | 3 x 5.5KW |
| Outside dimension | 1830x1400x1480mm | 1830x1500x1480mm | 1950x1650x1500mm |
| Machine weight | 1420kg | 1750kg | 2350kg |
| CNC description | Siemens PLC system, bending angle digital input, precision +-1 degree. Punching, cutting and bending can work at the same time | ||
